Product Model
msb4n-1/4:c3j1f3m1-wp
Selling Points

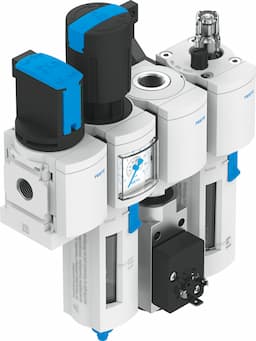

- 1Efficient Air Preparation: The Festo MSB4N-1/4:C3J1F3M1-WP service unit combination ensures high-quality compressed air by filtering out dirt particles and condensate, providing a clean and reliable operating medium.
- 2Advanced Filtration: Equipped with a 40 µm grade of filtration, this service unit effectively removes contaminants from the air, ensuring optimal performance in pneumatic systems.
- 3Automatic Condensate Drain: The fully automatic condensate drain feature eliminates the need for manual intervention, reducing downtime and enhancing overall system efficiency.
- 4Pressure Regulation: With a pressure regulation range of 4 bar to 12 bar, this service unit maintains consistent operating pressures, ensuring stable performance in various industrial applications.
- 5Versatile Mounting Options: Designed for vertical mounting with a +/-5° angle tolerance, the MSB4N-1/4:C3J1F3M1-WP offers flexible installation options, making it suitable for a wide range of industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with integrated lock | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |
Structural design | Filter regulator with pressure gauge Proportional standard oil mist lubricator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |

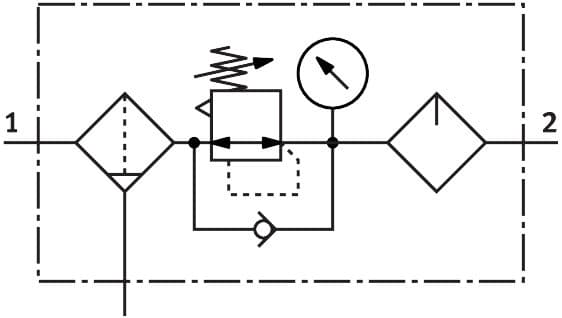

Bowl guard | Plastic bowl guard | Symbol | 00991761 |
Pressure gauge | with pressure gauge | Operating pressure | 1.5bar 14bar |
Pressure regulation range | 1bar 12bar | Standard nominal flow rate | 950l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:-] | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 1700g |
Type of mounting | With accessories | Pneumatic connection 1 | 1/4 NPT |
Pneumatic connection 2 | 1/4 NPT | Pneumatic connection 3 | 1/4 NPT |
Housing material | Die-cast aluminum | Material of bowl | PC |
Manufacturer ID | 543549 |
Specifications may be subject to change without notice
