Product Model
msb4n-1/4:h4n3m1-wp
Selling Points

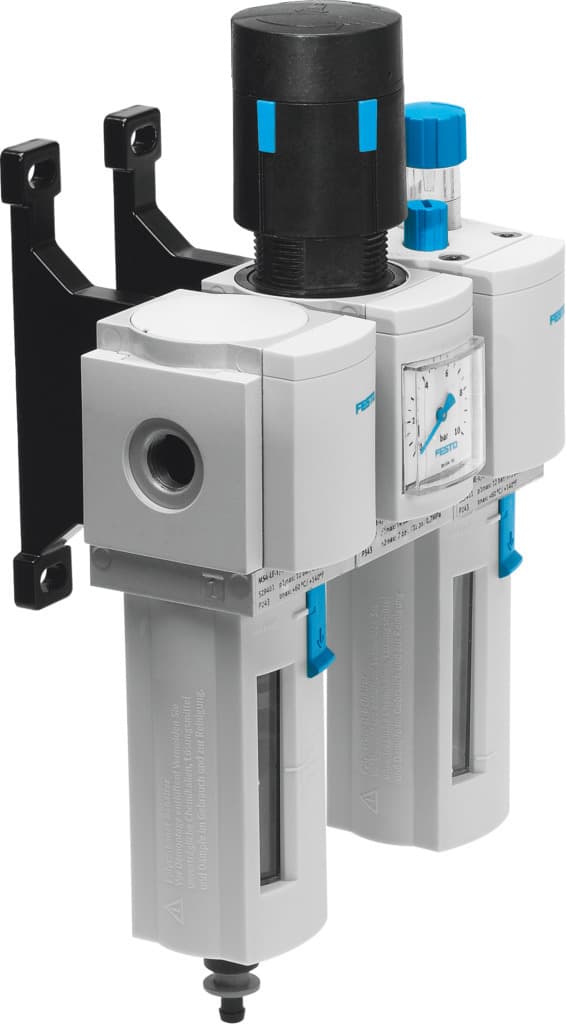

- 1The Festo MSB4N-1/4:H4N3M1-WP is a pre-configured air preparation combination unit that filters compressed air to 5μm, ensuring high purity and reliability in industrial processes.
- 2This unit includes a pressure regulator, various filters, a branch module, and pressurization and exhaust valves, making it a comprehensive solution for air quality management.
- 3The MSB4N-1/4:H4N3M1-WP is designed with a mounting bracket for easy installation, reducing setup time and increasing operational efficiency.
- 4With its robust construction and reliable components, this service unit combination provides long-lasting performance and minimal maintenance requirements.
- 5Ideal for a wide range of industrial applications, the Festo MSB4N-1/4:H4N3M1-WP ensures consistent compressed air quality, reducing downtime and improving overall productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with integrated lock | Mounting position | Vertical +/- 5° |
Grade of filtration | 5μm | Condensate drain | Fully automatic |
Structural design | Filter regulator with pressure gauge Proportional standard oil mist lubricator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
Bowl guard | Plastic bowl guard | Symbol | 00991761 |
Pressure gauge | with pressure gauge | Operating pressure | 2bar 12bar |
Pressure regulation range | 1bar 12bar | Standard nominal flow rate | 700l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:-] | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 1000g |
Type of mounting | With accessories | Pneumatic connection 1 | 1/4 NPT |
Pneumatic connection 2 | 1/4 NPT | Housing material | Die-cast aluminum |
Material of bowl | PC | Manufacturer ID | 541434 |
Specifications may be subject to change without notice
