Product Model

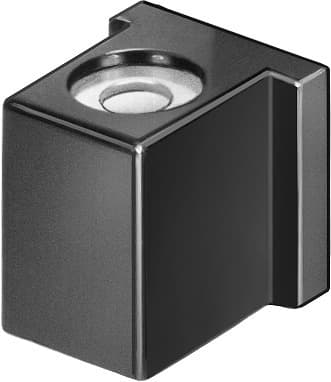

msfg-24/42-50/60-ds-od
Selling Points
- 1The MSFG-24/42-50/60-DS-OD solenoid coil offers a power factor of 0.7, ensuring high efficiency in your industrial automation applications.
- 2With a minimum pick-up time of 10 ms, this solenoid coil provides fast switching capabilities, ideal for applications requiring quick responses.
- 3Constructed with durable materials, the MSFG-24/42-50/60-DS-OD solenoid coil is designed to withstand the demands of industrial environments.
- 4This solenoid coil is compatible with various mounting positions, making it versatile for different industrial automation setups.
- 5The MSFG-24/42-50/60-DS-OD solenoid coil ensures reliable performance with a duty cycle of 100%, making it suitable for continuous operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Switching position indication | no |
Min. pick-up time | 10ms | Duty cycle | 100% |
Power factor cos {phi} | 0.7 | Coil characteristics | 24 V DC: 4.5 W 42 V AC: 50/60 Hz, initial power 9.0 VA, holding power 7.0 VA |
Permissible frequency fluctuations | +/- 5% | Permissible voltage fluctuations | +/- 10 % |
LABS (PWIS) conformity | VDMA24364-C1-L | Degree of protection | IP65 |
Ambient temperature | -5°C 40°C | Max. tightening torque of socket | 0.4Nm |
Product weight | 55g | Electrical connection | as per DIN EN 175301-803 |
Type of mounting | With knurled nut | Note on materials | RoHS-compliant |
Solenoid coil material | Duroplast Copper Steel | Material of winding | Copper |
Manufacturer ID | 34412 |
Specifications may be subject to change without notice
