Product Model
nebm-h6g4-e-2.5-q13n-le4
Selling Points

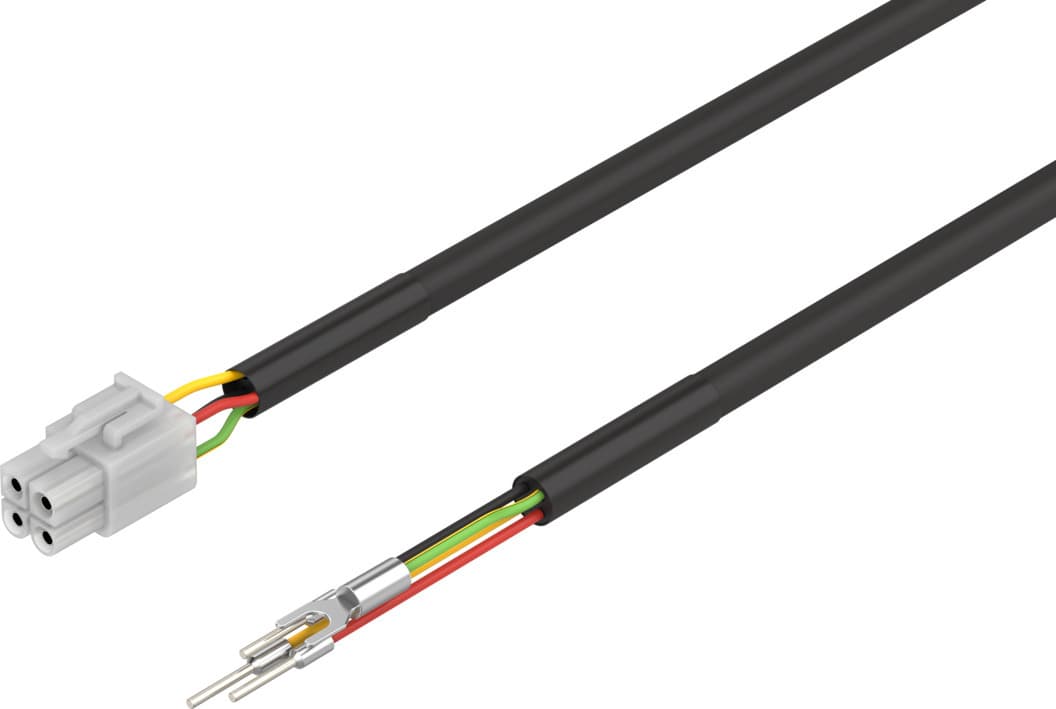

- 1Reliable Electrical Connection: The Festo NEBM-H6G4-E-2.5-Q13N-LE4 motor cable provides a secure and efficient electrical connection for your servo drive systems, ensuring optimal performance and durability.
- 2Versatile Design: With a rectangular design and socket connection, this cable is versatile and easy to integrate into various motor configurations, making it a perfect accessory for your industrial applications.
- 3High Surge Resistance: Equipped with a surge resistance of 2 kV, this motor cable protects your system from electrical surges, ensuring continuous operation and minimizing downtime.
- 4Flexible Installation Options: The cable's 2.5 m length and 55 mm bending radius allow for flexible installation, making it suitable for both fixed and moving cable installations in your energy chains.
- 5Compliance with Industry Standards: The Festo NEBM-H6G4-E-2.5-Q13N-LE4 motor cable meets EU Low Voltage Directive, EU RoHS Directive, and UKCA marking requirements, ensuring compliance with industry standards for safety and environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram H6, coded for motor |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
Electrical connection for input 1, connection pattern | 00995790 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 4 | Electrical connection 2, occupied pins/wires | 4 |
DC operating voltage range | 0V 300V | Operating voltage range AC | 0V 300V |
Current rating at 40° C | 9.5A | Surge resistance | 2kV |
Cable length | 2.5m | Cable characteristic | Suitable for energy chains |
Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 55mm |
Bending radius, flexible cable installation | 55mm | Cable diameter | 7.3mm |
Cable design | 4 x 0.79 mm2 | Nominal conductor cross section | AWG18 |
Wire ends | Cable end sleeve | Degree of protection | IP20 |
Note on degree of protection | In mounted state | Ambient temperature | -25°C 90°C |
Ambient temperature with flexible cable installation | -25°C 90°C | CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment | LABS (PWIS) conformity | VDMA24364 zone III |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | PVC |
Color cable sheath | Black | Housing material | PA |
Housing colour | White | Insulating sheath material | PVC |
Manufacturer ID | 5219197 |
Specifications may be subject to change without notice
