Product Model

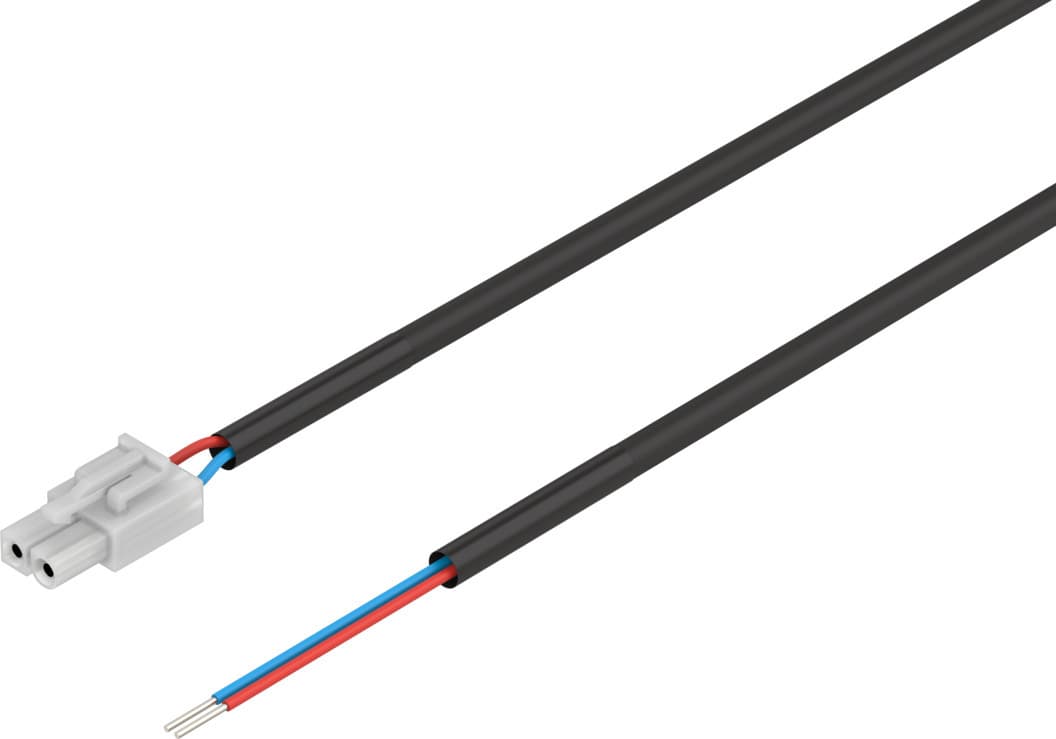

nebm-h7g2-e-10-q14n-le2
Selling Points
- 1The NEBM-H7G2-E-10-Q14N-LE2 connecting cable is engineered with a PVC cable sheath, ensuring excellent corrosion resistance and durability in various operating conditions.
- 2Featuring angular and socket connections, this cable provides reliable field device and controller side connections, ensuring seamless communication in motor brake systems.
- 3Compatible with DC and AC voltages up to 30V, this cable supports a broad range of applications, including those requiring high current ratings of up to 5A at 40°C.
- 4With a bending radius of 55mm for moving cables and 27mm for fixed cables, this cable offers flexibility in installation, making it suitable for various energy chain applications.
- 5Meets EU RoHS Directive and UK RoHS instructions, ensuring compliance with environmental regulations. It also features IP20 degree of protection, ensuring safe operation in various ambient temperatures from -40°C to 80°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram H7, coded for motor brake |
Electrical connection 1, number of pins/wires | 2 | Electrical connection 1, occupied pins/wires | 2 |
Electrical connection for input 1, connection pattern | 00995791 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 2 | Electrical connection 2, occupied pins/wires | 2 |
DC operating voltage range | 0V 30V | Operating voltage range AC | 0V 30V |
Current rating at 40° C | 5A | Surge resistance | 2kV |
Cable length | 10m | Cable characteristic | Suitable for energy chains |
Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 27mm |
Bending radius, flexible cable installation | 55mm | Cable diameter | 5.1mm |
Cable design | 2 x 0.51 mm2 | Nominal conductor cross section | AWG20 |
Wire ends | Cable end sleeve | Degree of protection | IP20 |
Note on degree of protection | In mounted state | Ambient temperature | -40°C 80°C |
Ambient temperature with flexible cable installation | -10°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364 zone III |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | PVC |
Color cable sheath | Black | Housing material | PA |
Housing colour | White | Insulating sheath material | PVC |
Manufacturer ID | 5219208 |
Specifications may be subject to change without notice
