Product Model

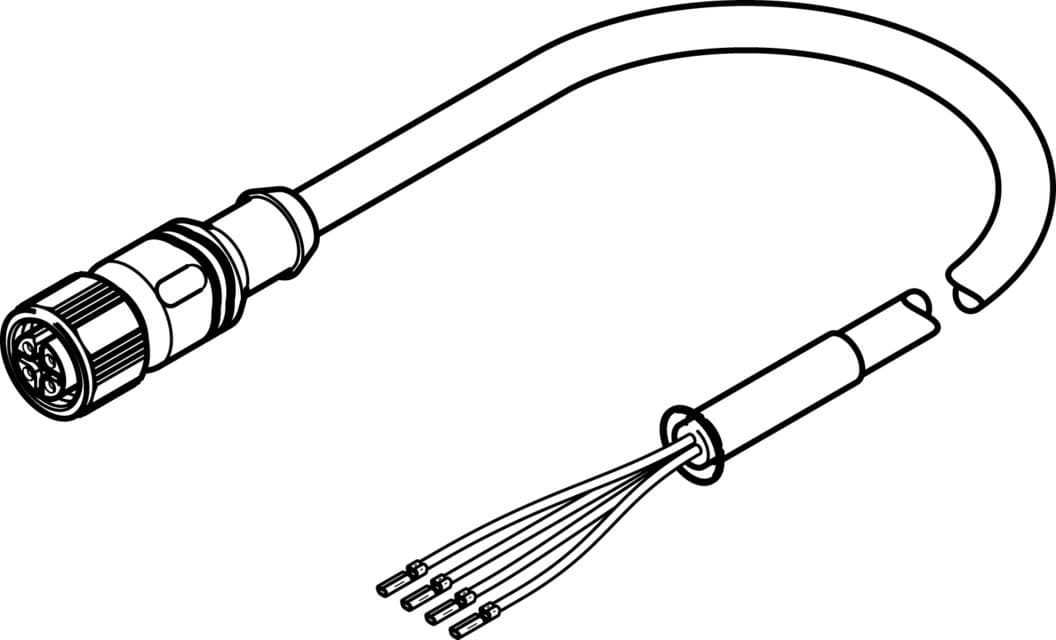

nebm-m12g4-rs-15-n-le4
Selling Points
- 1Robust Connectivity: Designed for Festo servo motors, stepper motors, and motor controllers.
- 2IP67 Protection: Ensures reliable operation in harsh environments with IP67 protection.
- 3Suitable for Robots: Ideal for robotic applications with a bending radius of ≥60 mm.
- 415m Length: Provides ample connectivity with a cable length of 15 meters.
- 5High-Quality Materials: Made from TPE-U(PUR) and NBR materials, ensuring durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | DIN 47100 EN 61984 | Cable designation | Without label holder |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 4 |
Electrical connection 1, occupied pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock with AF 14 |
Electrical connection for input 1, connection pattern | 00995385 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 4 | Electrical connection 2, occupied pins/wires | 4 |
DC operating voltage range | 0V 250V | Operating voltage range AC | 0V 250V |
Current rating at 40° C | 4A | Shield | yes |
Cable length | 15m | Cable characteristic | Suitable for robot applications |
Bending radius, flexible cable installation | 60mm | Cable diameter | 5.9mm |
Cable design | 4 x 0.34 mm2 | Nominal conductor cross section | 0.34mm2 |
Wire ends | Cable end sleeve | Degree of protection | IP67 |
Note on degree of protection | In mounted state | Ambient temperature | -25°C 80°C |
Ambient temperature with flexible cable installation | 0°C 40°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Black | Housing material | TPE-U(PUR) |
Seals material | NBR | Insulating sheath material | TPE-E |
Manufacturer ID | 571907 |
Specifications may be subject to change without notice
