Product Model

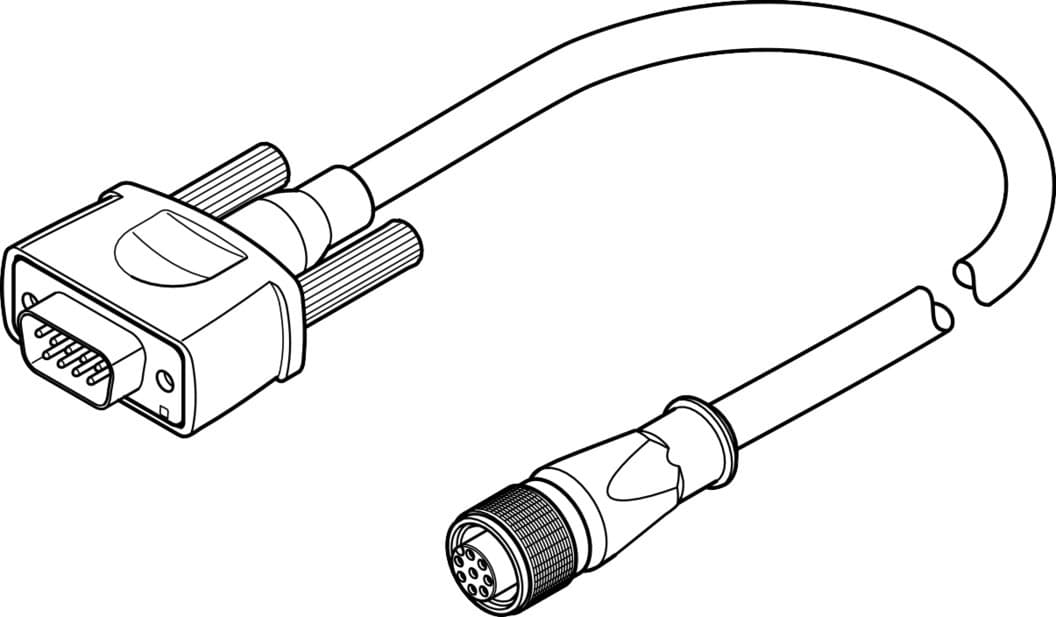

nebm-m12g8-e-25-s1g9
Selling Points
- 1Reliable Connectivity: The NEBM-M12G8-E-25-S1G9 encoder cable provides a secure and reliable connection for energy chains, ensuring smooth operation in various industrial settings.
- 2Wide Voltage Range: Compatible with 0-30V DC, this cable offers flexibility in voltage requirements, making it suitable for a wide range of applications.
- 3Durable Design: Constructed with a shielded cable and TPE-U(PUR) sheath, the NEBM-M12G8-E-25-S1G9 is designed to withstand harsh industrial environments and maintain its performance over time.
- 4IP65 Protection: Featuring an IP65 rating, this cable is protected against dust and water, ensuring continuous operation even in challenging conditions.
- 5Versatile Compatibility: Designed for use with Festo servo motors, stepper motors, motor controllers, and servo drives, the NEBM-M12G8-E-25-S1G9 is a versatile solution for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 8 | Electrical connection 1, occupied pins/wires | 8 |
Electrical connection for input 1, connection pattern | 00992265 | Electrical connection 2, function | Control side |
Electrical connection 2, design | Rectangular | Electrical connection 2, connection type | Plug |
Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | Sub-D |
Electrical connection 2, number of pins/wires | 9 | Electrical connection 2, occupied pins/wires | 8 |
Electrical connection 2, connection pattern | 00995639 | DC operating voltage range | 0V 30V |
Nominal operating voltage DC | 24V | Operating voltage range AC | 0V 30V |
Nominal operating voltage AC | 24V | Shield | yes |
Cable length | 25m | Cable characteristic | Suitable for energy chains |
Bending radius, flexible cable installation | 49mm | Cable diameter | 6.5mm |
Cable design | 4 x 2 x 0.14 mm2 | Nominal conductor cross section | 0.14mm2 |
Degree of protection | IP65 | Note on degree of protection | IP30 for Sub-D plug In mounted state |
Ambient temperature | -40°C 70°C | Ambient temperature with flexible cable installation | -40°C 70°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Manufacturer ID | 5105626 |
Specifications may be subject to change without notice
