Product Model
nebm-reg6-e-5-q14n-reg6
Selling Points

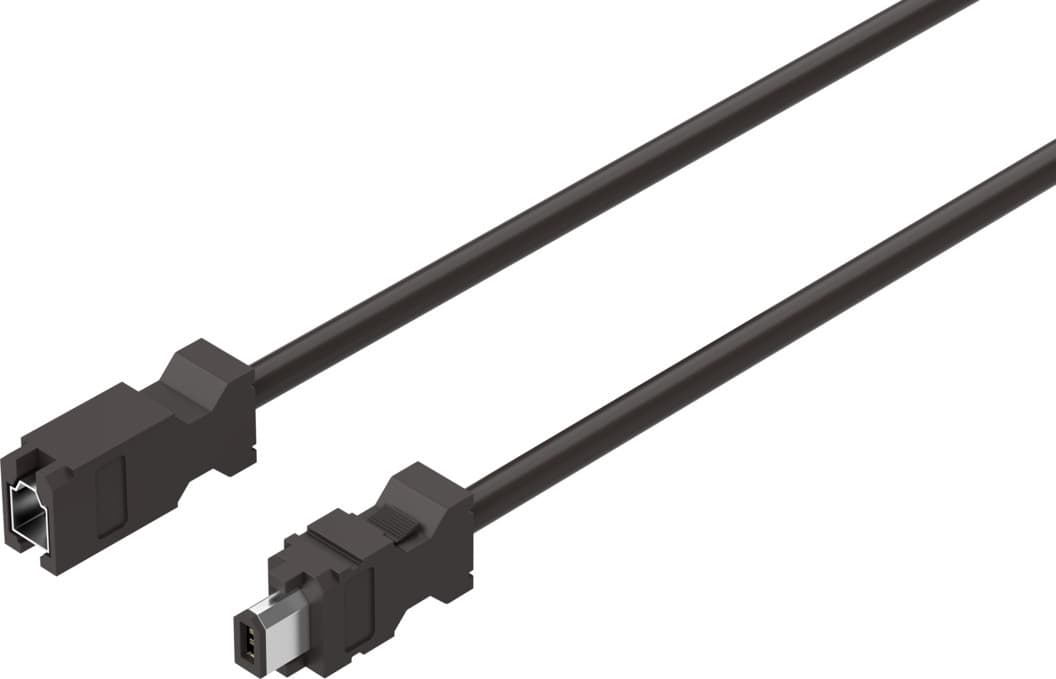

- 1The Festo 5219214 NEBM-REG6-E-5-Q14N-REG6 encoder cable is designed for use in field devices, ensuring precise control and reliable performance in industrial applications.
- 2This encoder cable features an angular design with a plug socket connection, providing a secure and efficient electrical connection.
- 3The cable designation is without an inscription label holder, making it easy to integrate into various systems without added complexity.
- 4The NEBM-REG6-E-5-Q14N-REG6 encoder cable is part of the NEBM group, known for its high-quality and durable components suitable for demanding industrial environments.
- 5Available for purchase online, this encoder cable offers a reliable solution for your industrial needs, backed by Festo's reputation for quality and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram RE |
Electrical connection 1, number of pins/wires | 6 | Electrical connection 1, occupied pins/wires | 6 |
Electrical connection for input 1, connection pattern | 00995793 | Electrical connection 2, function | Control side |
Electrical connection 2, design | Rectangular | Electrical connection 2, connection type | Plug |
Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | Connection diagram RE |
Electrical connection 2, number of pins/wires | 6 | Electrical connection 2, occupied pins/wires | 6 |
Electrical connection 2, connection pattern | 00995792 | DC operating voltage range | 0V 30V |
Operating voltage range AC | 0V 30V | Current rating at 40° C | 1.6A |
Surge resistance | 2kV | Cable length | 5m |
Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
Bending radius, fixed cable installation | 55mm | Bending radius, flexible cable installation | 55mm |
Cable diameter | 7.4mm | Cable design | 2 x 0.51 mm2 + 4 x 0.205 mm2 |
Nominal conductor cross section | AWG20 AWG24 | Degree of protection | IP20 |
Note on degree of protection | In mounted state | Ambient temperature | -40°C 80°C |
Ambient temperature with flexible cable installation | -10°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364 zone III |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | PVC |
Color cable sheath | Black | Housing material | PVC |
Housing colour | Gray | Insulating sheath material | PVC |
Manufacturer ID | 5219214 |
Specifications may be subject to change without notice
