Product Model
nebm-s1w15-e-5-q7-le6
Selling Points

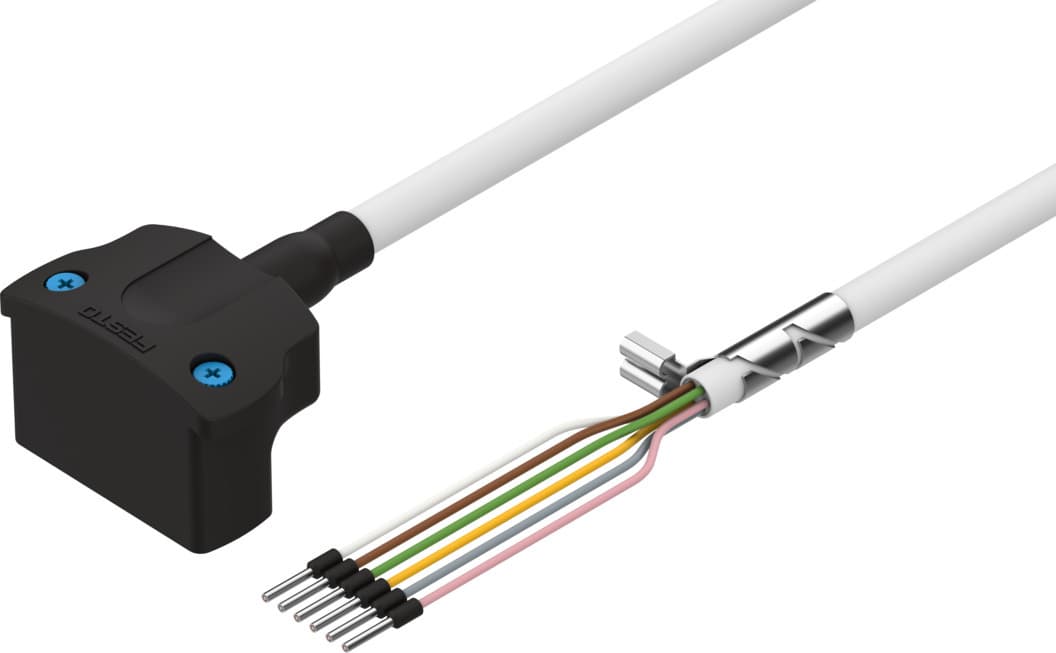

- 1The Festo NEBM-S1W15-E-5-Q7-LE6 motor cable is designed for use with servo motors, stepper motors, and motor controllers, ensuring seamless connectivity in industrial applications.
- 2This cable features a suitable operating voltage range of DC 0 to 72 V, making it versatile for various industrial control systems.
- 3The cable has a degree of protection IP65, ensuring it can withstand harsh industrial environments and maintain its performance.
- 4With a nominal conductor cross-section of 0.75 mm² and a shielded design, the NEBM-S1W15-E-5-Q7-LE6 provides reliable electrical connections and minimal signal interference.
- 5The cable is made from RoHS-compliant TPE-U(PUR) materials, ensuring it meets environmental and safety standards, and has a bending radius of ≥80 mm for flexible installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | Sub-D |
Electrical connection 1, number of pins/wires | 15 | Electrical connection 1, occupied pins/wires | 10 |
Electrical connection for input 1, connection pattern | 00995640 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 6 | Electrical connection 2, occupied pins/wires | 6 |
DC operating voltage range | 0V 72V | Nominal operating voltage DC | 24V |
Shield | yes | Cable length | 5m |
Cable characteristic | Suitable for energy chains | Bending radius, flexible cable installation | 80mm |
Cable diameter | 8mm | Cable design | 6 x 0.75 mm2 |
Nominal conductor cross section | 0.75mm2 | Wire ends | Cable end sleeve |
Degree of protection | IP65 | Note on degree of protection | In mounted state |
Ambient temperature | -40°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Gray | Manufacturer ID | 1450945 |
Specifications may be subject to change without notice
