Product Model

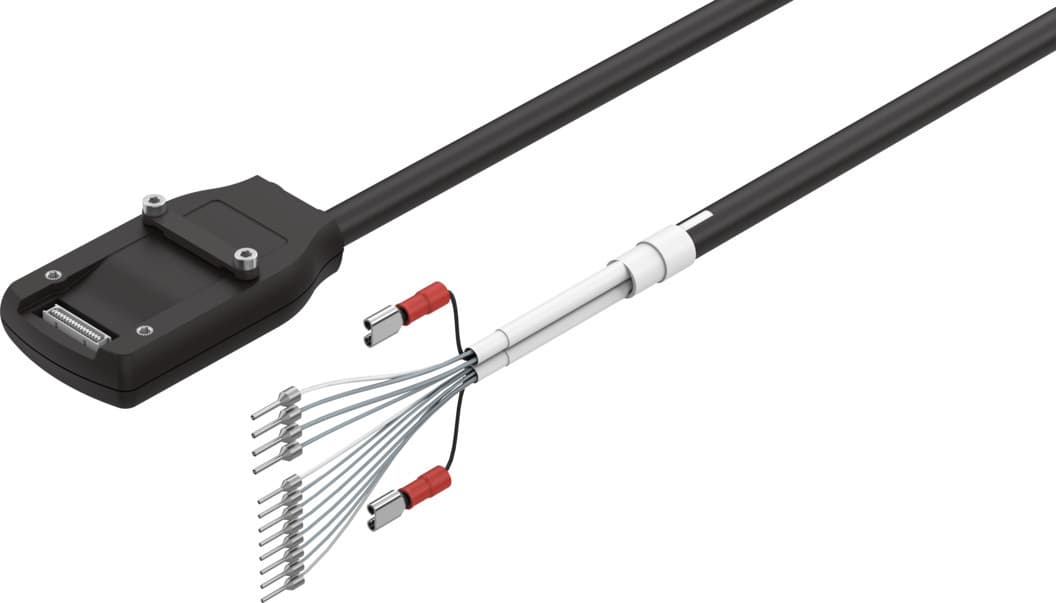

nebm-sf1w31-eh-10-q15n-le14
Selling Points
- 10.5 A at 40°C for reliable operation.
- 20.25 kV for protection against electrical surges.
- 3Hybrid cable with PUR cable sheath and TPE-U(PUR) housing.
- 4Bending radius of 74.25 mm for easy cable management.
- 5Meets DIN 47100 and EU RoHS Directive for safety and sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | DIN 47100 | Cable designation | Without label holder |
Contact durability | 30 | Product weight | 2960g |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
Electrical connection 1, connection type | Plug | Electrical connection 1, cable outlet | Angled |
Electrical connection 1, information on cable outlet | 90° | Electrical connection 1, connection technology | Connection diagram F1 |
Electrical connection 1, number of pins/wires | 31 | Electrical connection 1, occupied pins/wires | 31 |
Electrical connection 1, type of mounting | Snap-locking | Electrical connection for input 1, connection pattern | 00995929 |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 14 |
Electrical connection 2, occupied pins/wires | 14 | DC operating voltage range | 0V 50V |
Nominal operating voltage DC | 24V | Current rating at 40° C | 0.5A |
Surge resistance | 0.25kV | Cable length | 10m |
Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
Bending radius, fixed cable installation | 49.5mm | Bending radius, flexible cable installation | 74.25mm |
Cable diameter | 9.9mm | Cable diameter tolerance | ± 0.2 mm |
Cable design | 1 x (6 x 0.35 mm2) + 2 x (4 x 0.15 mm2) | Nominal conductor cross section | 0.35mm2 |
Wire ends | Cable end sleeve | Degree of protection | IP20 |
Note on degree of protection | In mounted state | Ambient temperature | -20°C 75°C |
Ambient temperature with flexible cable installation | -5°C 70°C | Storage temperature | -25°C 55°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
Contamination level | 1 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Black |
Housing material | PA | Housing colour | Black |
Material of pin contacts | Copper alloy, tin-plated | Manufacturer ID | 8113310 |
Specifications may be subject to change without notice
