Product Model
nebm-sm12g8-e-2.5-q5-le6
Selling Points

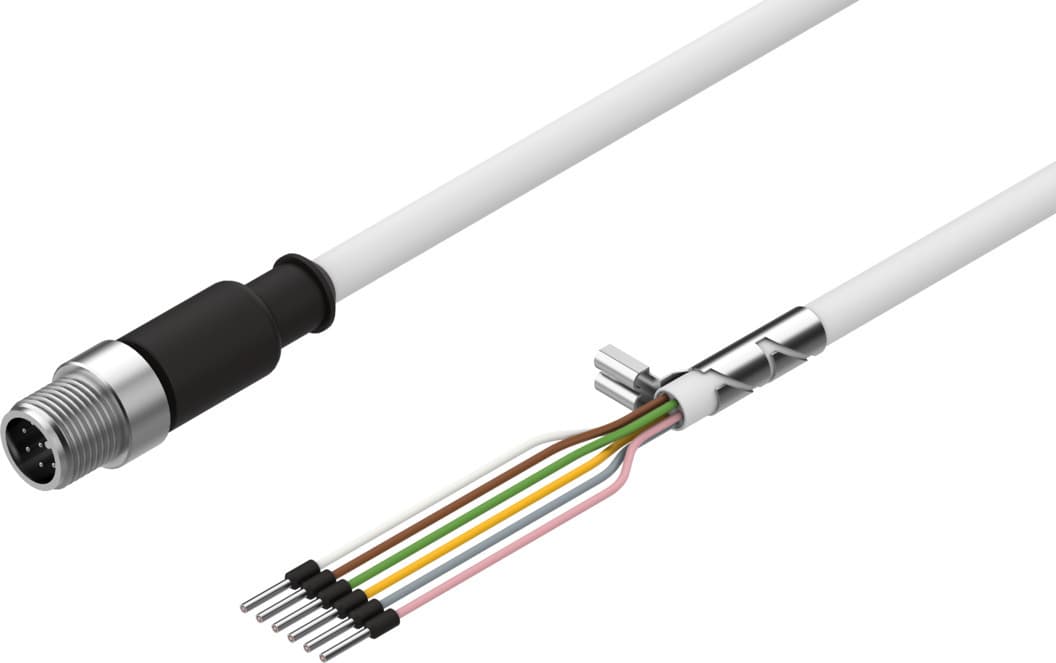

- 1The Festo NEBM-SM12G8-E-2.5-Q5-LE6 motor cable is designed for use in energy chains, ensuring flexible and reliable cable management in industrial settings.
- 2This cable features a TPE-U(PUR) material sheath, providing excellent corrosion resistance and durability in various ambient temperatures.
- 3With an IP65 degree of protection, the NEBM-SM12G8-E-2.5-Q5-LE6 motor cable is suitable for harsh environments and ensures reliable operation.
- 4The cable has a nominal cross-section conductor of 6 x 0.34 mm², ensuring efficient electrical conductivity and minimal signal loss.
- 5The NEBM-SM12G8-E-2.5-Q5-LE6 motor cable is compatible with M12x1 A-coded connectors, adhering to EN 61076-2-101 standards for secure and reliable connections.
- 6Lay the energy chain lengthwise.
- 7Place the cables in the chain, ensuring they are not twisted.
- 8Separate the cables from each other using separators or drill holes.
- 9Mount the energy chain according to the corresponding instructions.
- 10Fasten the cables at both ends of the chain for short energy chains or only at the driver end for long, sliding chains.
- 11Do not connect or disconnect the plug connector when powered.
- 12Assembly and installation should only be carried out by qualified personnel with electrical training or relevant qualifications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 8 | Electrical connection 1, occupied pins/wires | 6 |
Electrical connection for input 1, connection pattern | 00992264 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 6 | Electrical connection 2, occupied pins/wires | 6 |
DC operating voltage range | 0V 72V | Nominal operating voltage DC | 24V |
Shield | yes | Cable length | 2.5m |
Cable characteristic | Suitable for energy chains | Bending radius, flexible cable installation | 62mm |
Cable diameter | 6.2mm | Cable design | 6 x 0.34 mm2 |
Nominal conductor cross section | 0.34mm2 | Wire ends | Cable end sleeve |
Degree of protection | IP65 | Note on degree of protection | In mounted state |
Ambient temperature | -40°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Manufacturer ID | 1449601 |
