Product Model
nebm-t1g8-e-20-n-s1g15
Selling Points

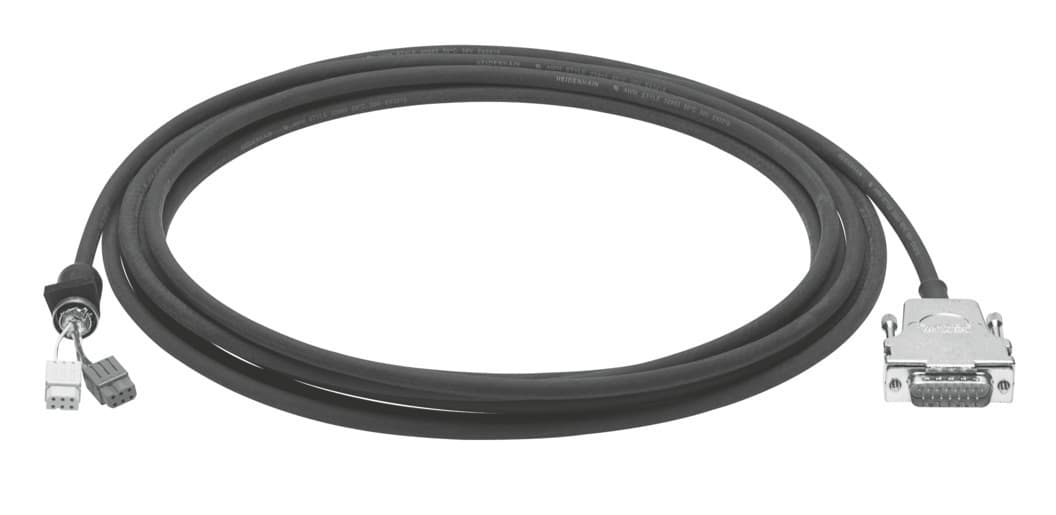

- 1The Festo NEBM-T1G8-E-20-N-S1G15 encoder cable is designed for reliable pneumatic connections, ensuring consistent performance in industrial automation applications.
- 2This cable features a robust construction with a cable diameter of 5.8 mm and a bending radius of 48 mm, making it suitable for various installation scenarios.
- 3The cable is shielded with TPE-U(PUR) material, providing excellent protection against electromagnetic interference and ensuring data integrity.
- 4With an operational voltage range of DC 0 V to 30 V and AC 0 V to 30 V, this encoder cable supports both DC and AC systems, offering flexibility in application.
- 5The NEBM-T1G8-E-20-N-S1G15 encoder cable is compliant with EU RoHS Directive and CE marking, ensuring it meets stringent safety and environmental standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Product weight | 1060g |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | ITT M3 | Electrical connection 1, number of pins/wires | 12 |
Electrical connection 1, occupied pins/wires | 8 | Electrical connection for input 1, connection pattern | 00995666 |
Electrical connection 2, function | Control side | Electrical connection 2, design | Rectangular |
Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Straight |
Electrical connection 2, connection technology | Sub-D | Electrical connection 2, number of pins/wires | 15 |
Electrical connection 2, occupied pins/wires | 8 | Electrical connection 2, connection pattern | 00995641 |
DC operating voltage range | 0V 30V | Nominal operating voltage DC | 24V |
Operating voltage range AC | 0V 30V | Nominal operating voltage AC | 24V |
Shield | yes | Cable length | 20m |
Cable characteristic | Suitable for energy chains | Bending radius, flexible cable installation | 48mm |
Cable diameter | 5.8mm | Cable design | 1 x 4 x 0.15 mm2 + 4 x 0.34 mm2 |
Nominal conductor cross section | 0.15mm2 | Degree of protection | IP65 |
Note on degree of protection | IP30 for Sub-D plug In mounted state | Ambient temperature | -40°C 80°C |
Ambient temperature with flexible cable installation | -10°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Material of cable sheath | TPE-U(PUR) |
Manufacturer ID | 5105627 |
