Product Model

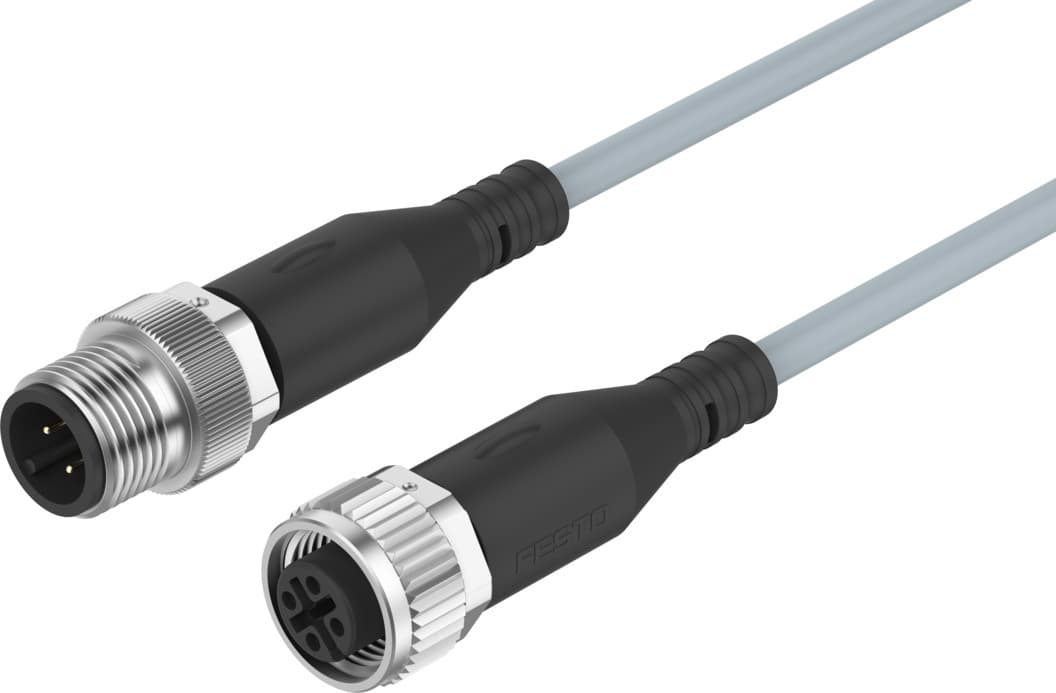

nebu-m12g5-k-0.5-m12g4
Selling Points
- 1High-Quality M12 Connector: The NEBU-M12G5-K-0.5-M12G4 features a reliable 4-pin M12 connector, ensuring secure and durable connections.
- 2IP65/68/69K Protection: This cable is designed with robust IP65, IP68, and IP69K protection, making it suitable for harsh industrial environments.
- 3Halogen-Free and RoHS Compliant: The cable is made from halogen-free materials and is RoHS compliant, ensuring environmental safety and compliance.
- 4Flexible Cable Design: With a cable length of 0.5 meters and a diameter of 4.5 mm, this cable offers flexibility in various industrial settings.
- 5Corrosion Resistant: The cable has a moderate corrosion resistance class (CRC) 2, providing protection against moderate corrosion stress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-101 | Cable designation | With 2x label holders |
Product weight | 36g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 5 | Electrical connection 1, occupied pins/wires | 4 |
Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | 00991861 |
Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Straight |
Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 2, number of pins/wires | 4 |
Electrical connection 2, occupied pins/wires | 4 | Electrical connection 2, type of mounting | Screw-type lock |
Electrical connection 2, connection pattern | 00995386 | DC operating voltage range | 0V 250V |
Operating voltage range AC | 0V 250V | Current rating at 40° C | 4A |
Surge resistance | 1.5kV | Cable length | 0.5m |
Cable characteristic | Standard | Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Energy chain > 5 million cycles, bending radius 75 mm |
Bending radius, fixed cable installation | 14mm | Bending radius, flexible cable installation | 46mm |
Cable diameter | 4.5mm | Cable diameter tolerance | ± 0.1 mm |
Cable design | 4 x 0.25 mm2 | Nominal conductor cross section | 0.25mm2 |
Degree of protection | IP65 IP68 IP69K | Note on degree of protection | In mounted state |
Special features | Oil-resistant | Ambient temperature | -25°C 70°C |
Ambient temperature with flexible cable installation | -5°C 70°C | CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester | Contamination level | 3 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Gray | Housing material | TPE-U(PUR) |
Housing colour | Black | Material of screw-type lock | Brass, nickel-plated |
Seals material | NBR | Material of pin contacts | Copper alloy, gold-plated |
Insulating sheath material | PP | Manufacturer ID | 8000208 |
Specifications may be subject to change without notice
