Product Model

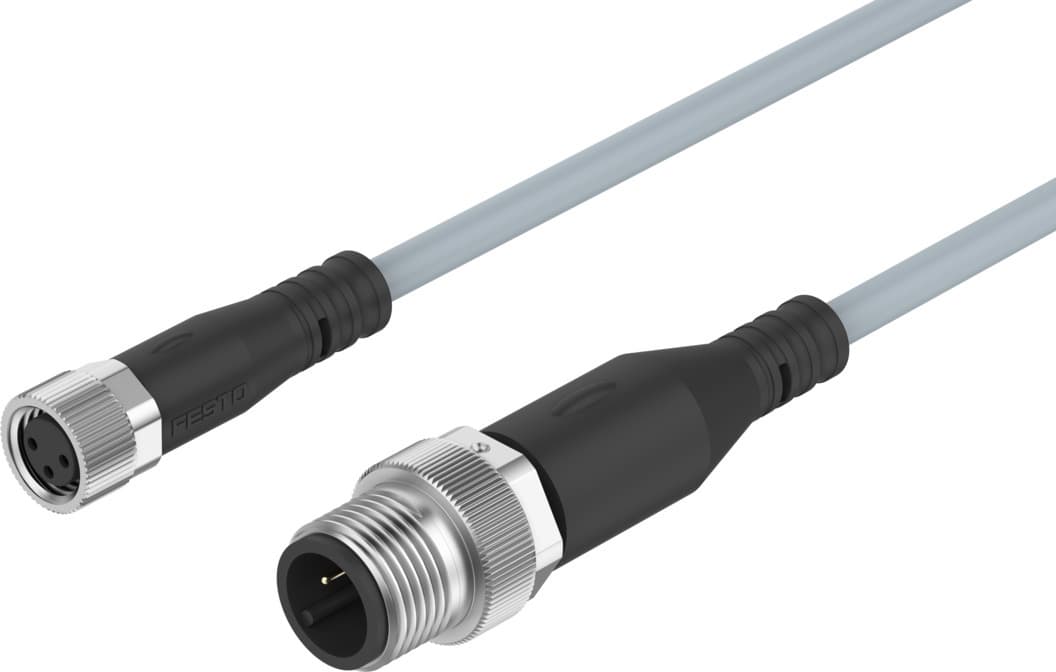

nebu-m8g3-k-0.5-m12g3
Selling Points
- 1Compliant with EN 60947-5-2, EN 61076-2-101, and EN 61076-2-104 standards.
- 2Oil-resistant and halogen-free, ensuring long-lasting performance.
- 3Operates within a wide voltage range of DC 0 to 60 V and AC 0 to 60 V.
- 4Supports a current load of up to 3 A at 40°C, with surge strength up to 1.5 kV.
- 5Features a durable TPE-U(PUR) cable sheath and nickel-plated brass screw lock.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-101 EN 61076-2-104 | Cable designation | With 2x label holders |
Product weight | 29g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, occupied pins/wires | 3 |
Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | 00991871 |
Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Straight |
Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 2, number of pins/wires | 3 |
Electrical connection 2, occupied pins/wires | 3 | Electrical connection 2, type of mounting | Screw-type lock |
Electrical connection 2, connection pattern | 00995573 | DC operating voltage range | 0V 60V |
Operating voltage range AC | 0V 60V | Current rating at 40° C | 3A |
Surge resistance | 1.5kV | Cable length | 0.5m |
Cable characteristic | Standard | Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Energy chain > 5 million cycles, bending radius 75 mm |
Bending radius, fixed cable installation | 12mm | Bending radius, flexible cable installation | 39mm |
Cable diameter | 3.8mm | Cable diameter tolerance | ± 0.1 mm |
Cable design | 3 x 0.25 mm2 | Nominal conductor cross section | 0.25mm2 |
Degree of protection | IP65 IP68 IP69K | Note on degree of protection | In mounted state |
Special features | Oil-resistant | Ambient temperature | -25°C 70°C |
Ambient temperature with flexible cable installation | -5°C 70°C | CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester | Contamination level | 3 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Gray | Housing material | TPE-U(PUR) |
Housing colour | Black | Material of screw-type lock | Brass, nickel-plated |
Seals material | NBR | Material of pin contacts | Copper alloy, gold-plated |
Insulating sheath material | PP | Manufacturer ID | 8000209 |
Specifications may be subject to change without notice
