Product Model

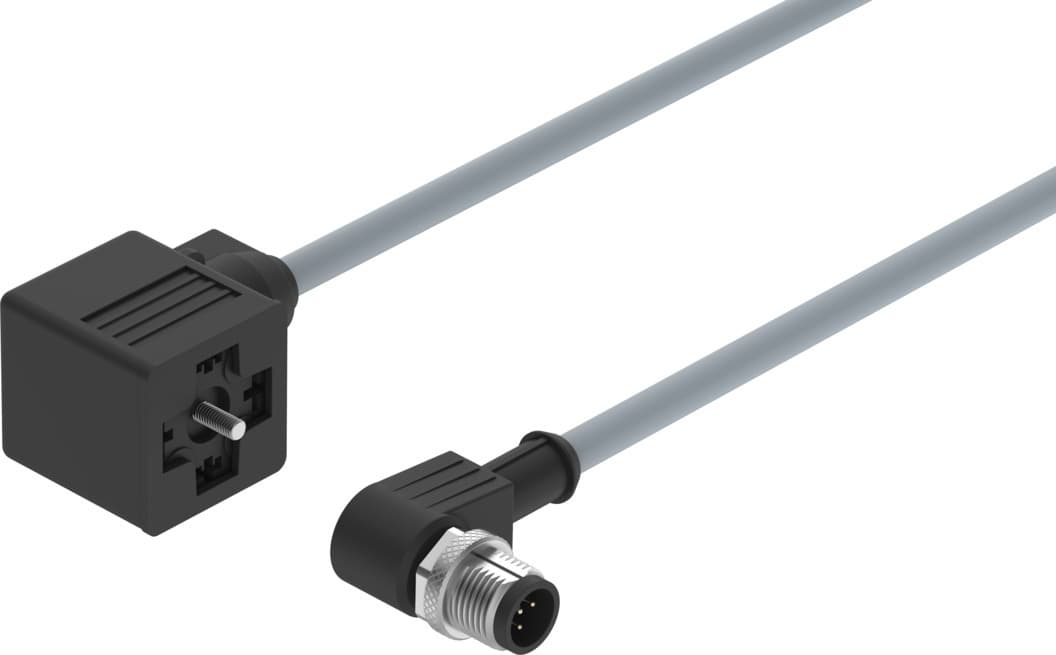

nebv-a1w3-k-0.6-n-m12w3
Selling Points
- 1CSA Approval: Meets stringent CSA (UL) standards for electrical safety, ensuring reliable performance in various environments.
- 2IP67 Protection: Offers robust protection against dust and water, making it suitable for harsh industrial conditions.
- 3Angular Design: Features an angular design for easy installation on solenoid valves with M3 central screws, enhancing connectivity and stability.
- 4Flexible Cable Length: Available in a 0.6m length, providing flexibility in system design and installation.
- 5Wide Operating Range: Supports operating voltages from 0 to 110V DC and AC, accommodating a broad range of applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Certification | c CSA us (OL) | Cable designation | Without label holder |
Product weight | 100g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | Connection diagram form A based on EN 175301-803 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
Electrical connection 1, type of mounting | On air solenoid valve with M3 central screw | Electrical connection for input 1, connection pattern | 00995710 |
Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Angled |
Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 2, number of pins/wires | 5 |
Electrical connection 2, occupied pins/wires | 3 | Electrical connection 2, type of mounting | Screw-type lock with hexagon, AF 13 |
Electrical connection 2, connection pattern | 00995711 | DC operating voltage range | 0V 110V |
Nominal operating voltage DC | 110V | Operating voltage range AC | 0V 110V |
Nominal operating voltage AC | 110V | Current rating at 40° C | 1A |
Surge resistance | 1.5kV | Protective earth connection | Available |
Cable length | 0.6m | Cable characteristic | Standard |
Connector cable test conditions | Test conditions on request | Cable diameter | 5.9mm |
Cable diameter tolerance | ± 0.3 mm | Cable design | 3 x 0.75 mm2 |
Degree of protection | IP67 | Note on degree of protection | In mounted state |
Ambient temperature | -25°C 80°C | Ambient temperature with flexible cable installation | -25°C 80°C |
CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | TPE-U(PUR) | Housing colour | Black |
Material of union nut | Die-cast zinc Nickel-plated | Insulating sheath material | PP |
Manufacturer ID | 3579462 |
Specifications may be subject to change without notice
