Product Model

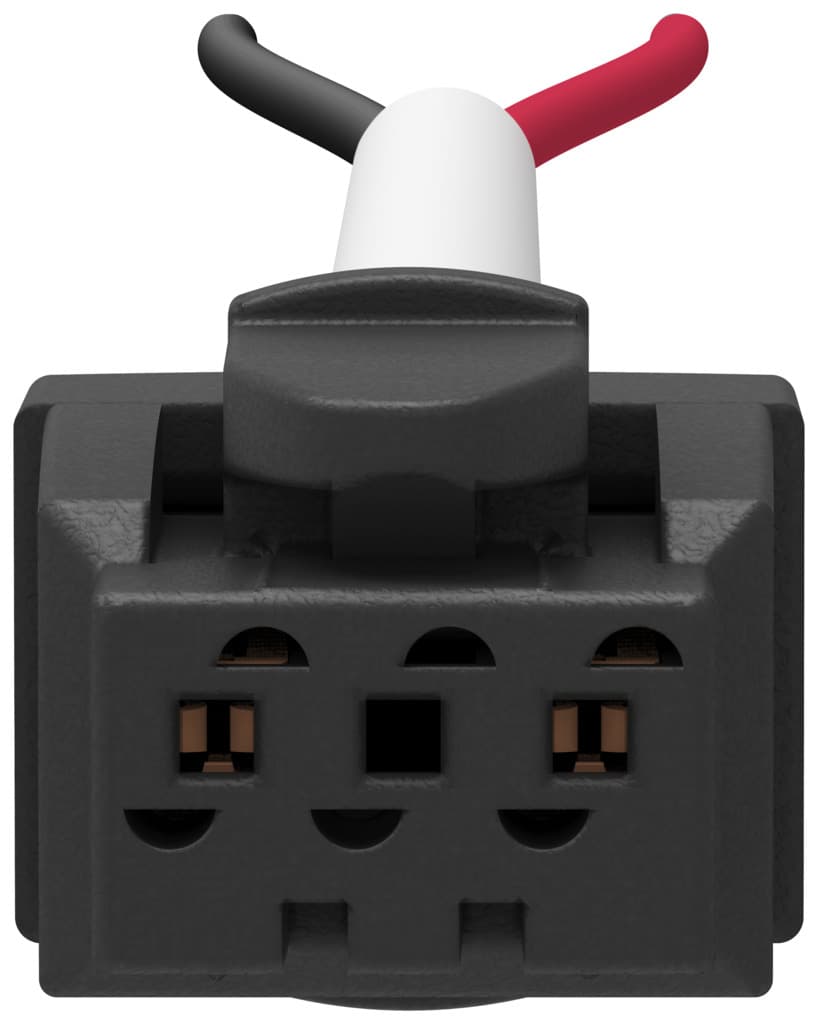

nebv-h1g2-p-1-n-le2
Selling Points
- 1Snap-locking design for secure mounting
- 22-pin electrical connection for versatility
- 31-meter cable length for convenient use
- 4Operating voltage range of 0-30V DC
- 5CE marked and RoHS compliant for safety
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Mounting position | Any |
Product weight | 16g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram H |
Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, occupied pins/wires | 2 |
Electrical connection 1, type of mounting | Snap-locking | Electrical connection for input 1, connection pattern | 00995622 |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 2 |
Electrical connection 2, occupied pins/wires | 2 | DC operating voltage range | 0V 60V |
Current rating at 40° C | 3A | Cable length | 1m |
Cable characteristic | for static applications | Cable diameter | 3.4mm |
Cable design | 2 x 0.14 mm2 | Nominal conductor cross section | 0.14mm2 |
Wire ends | Stripped Cut off bluntly | Degree of protection | IP40 |
Note on degree of protection | In mounted state | Ambient temperature | -5°C 60°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | POM | Housing colour | Black |
Material of pin contacts | Copper alloy Tin-plated | Insulating sheath material | PVC |
Manufacturer ID | 566659 |
