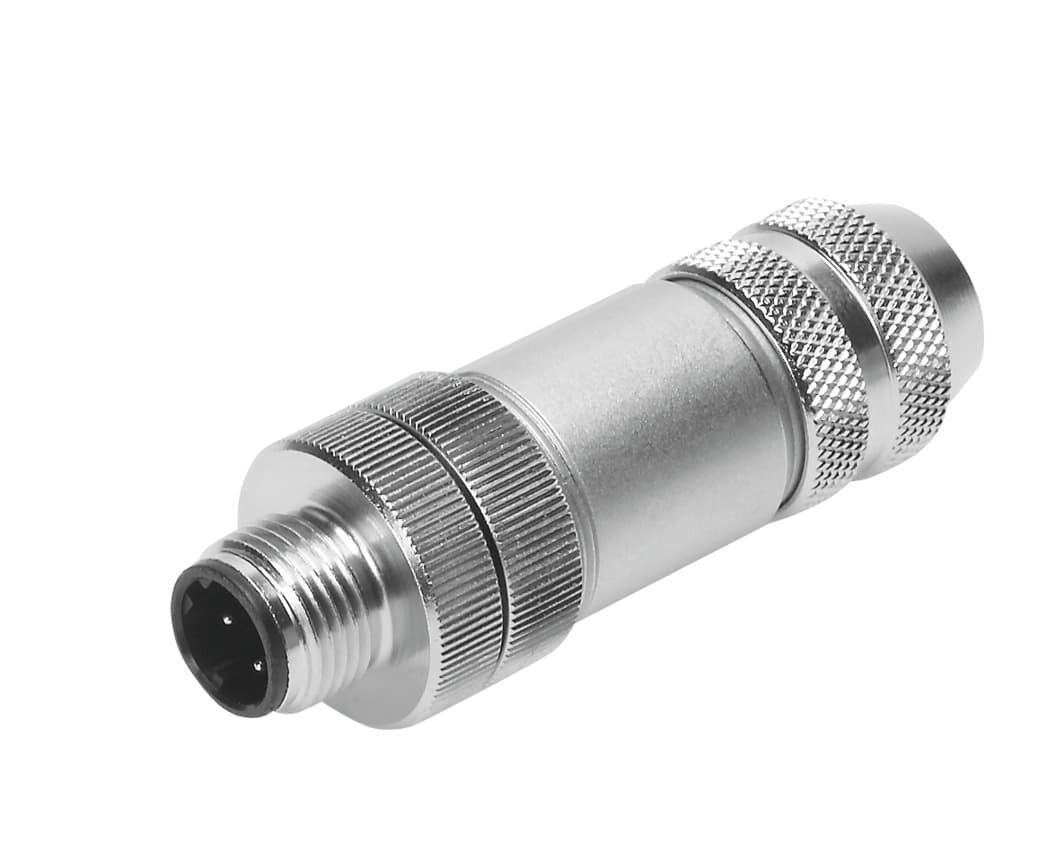

Festo NECU-M-S-D12G4-C2-ET Plug Connector: High-Quality Electrical Connection Solution

Selling Points

1The NECU-M-S-D12G4-C2-ET plug connector features a straight plug connector with an M12x1, 4-pin, D-coded, screenable design, ensuring secure and reliable electrical connections.
2This plug connector operates within a wide voltage range of DC 0 V to 250 V and AC 0 V to 250 V, making it versatile for various industrial applications.
3With an immunity to surge of 2.5 kV, the NECU-M-S-D12G4-C2-ET provides robust protection against electrical surges, ensuring the longevity of your equipment.
4The plug connector is designed to meet the standards of EN 61076-2-101 and EN 61984, ensuring compliance with international electrical standards.
5The NECU-M-S-D12G4-C2-ET features an IP67 protection class, making it suitable for harsh environments and ensuring reliable performance in various industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Based on norm	EN 61076-2-101 EN 61984	Product weight	44.3g
Electrical connection 1	Straight plug, M12x1, 4-pin, D-coded, shieldable	Plug coding	D
Electrical connection 2	Screw terminal, can be shielded	DC operating voltage range	0V 250V
Operating voltage range AC	0V 250V	Surge resistance	2.5kV
Transmission characteristics	DIN EN 50173/CAT 5	Approved cable diameter	6mm 8mm
Connection cross section	0.14mm2 0.75mm2	Degree of protection	IP67
Ambient temperature	-25°C 85°C	CE marking (see declaration of conformity)	As per EU low voltage directive
UKCA marking (see declaration of conformity)	To UK instructions for electrical equipment	LABS (PWIS) conformity	VDMA24364-B2-L
Note on materials	RoHS-compliant	Contamination level	3
Corrosion resistance class (CRC)	1 - Low corrosion stress	Housing material	Die-cast zinc, nickel-plated
Material of pin contacts	Brass, gold-plated	Manufacturer ID	543109

Specifications may be subject to change without notice
