Product Model
nev-02-vdma
Selling Points

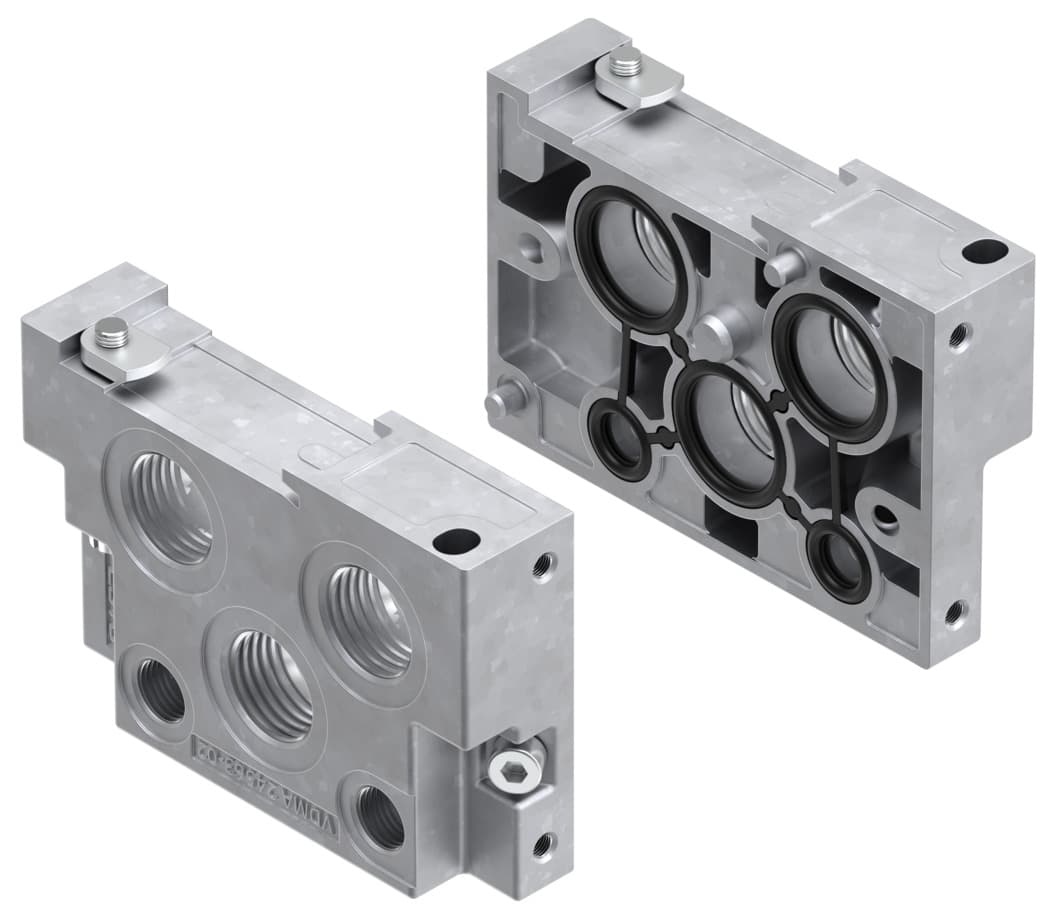

- 1The Festo NEV-02-VDMA end plate kit is designed for manifold assembly, ensuring precise and reliable operation in industrial settings.
- 2Equipped with die-cast aluminum housing, this kit provides durability and resistance to wear and tear.
- 3The kit features 3 x G3/8" threaded pneumatic connections (ports 1, 3, 5) and 2 x G1/8" threaded pneumatic connections (ports 12, 14), ensuring versatile connectivity.
- 4Compliant with ISO 8573-1:2010 standards, this kit operates with compressed air, making it suitable for a wide range of industrial applications.
- 5With a product weight of 280 grams, the NEV-02-VDMA end plate kit is lightweight yet robust, making it easy to integrate into various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 280g |
Pilot air port 12/14 | G1/8 | Pneumatic connection 1 | G3/8 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 5 | G3/8 |
Housing material | Die-cast aluminum | Manufacturer ID | 161112 |
Specifications may be subject to change without notice
