Product Model

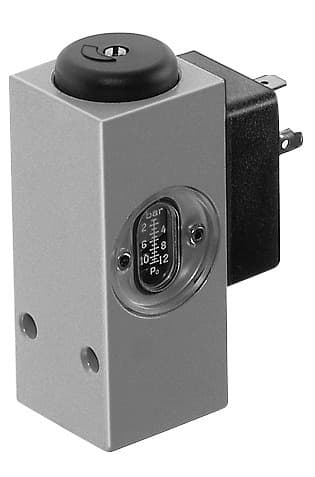

pev-1/4-sc-od
Selling Points
- 1The Festo PEV-1/4-SC-OD pressure switch provides accurate and adjustable pressure settings, ensuring precise control in your pneumatic systems.
- 2This pressure switch is designed for easy installation, with a G 1/4 connection and standardized dimensions, making it simple to integrate into your existing setup.
- 3The PEV-1/4-SC-OD allows for adjustable switching pressure from 1 to 12 bar, giving you the flexibility to set the optimal pressure for your application.
- 4This pressure switch operates contactlessly, reducing wear and tear and ensuring long-lasting performance in your pneumatic system.
- 5The Festo PEV-1/4-SC-OD meets CE compliance standards and features an IP 65 protection rating, ensuring safe and reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | EN 60947-5-1 | Symbol | 00991471 |
Certification | CCC | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Note on materials | RoHS-compliant | Measured variable | Relative pressure |
Method of measurement | Pneumatic/electrical pressure transducer with adjustment scale | Operating pressure | 1bar 12bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Temperature of medium | -20°C 80°C | Ambient temperature | -20°C 80°C |
Switching element function | Changeover switch | Max. switching frequency | 3Hz |
Max. switching output voltage AC | 250V | Max. switching output voltage DC | 125V |
Max. output current | 5000mA | Minimum load current | 1 mA at 24 V 10 mA at 10 V 100 mA at 5V |
Utilization category for inductive load | AC-14 DC-13 | Utilization category for ohmic load | AC-12 DC-12 |
Electrical connection | Form A Plug as per DIN 43650 Rectangular design | Type of mounting | With through-hole |
Mounting position | Any | Pneumatic connection | G1/4 |
Product weight | 144g | Housing material | Die-cast aluminum |
Switching contact material | Silver | Setting range threshold value | 1bar 12bar |
Degree of protection | IP65 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Manufacturer ID | 161760 |
Specifications may be subject to change without notice
