Product Model
pun-8x1,25-rt
Selling Points

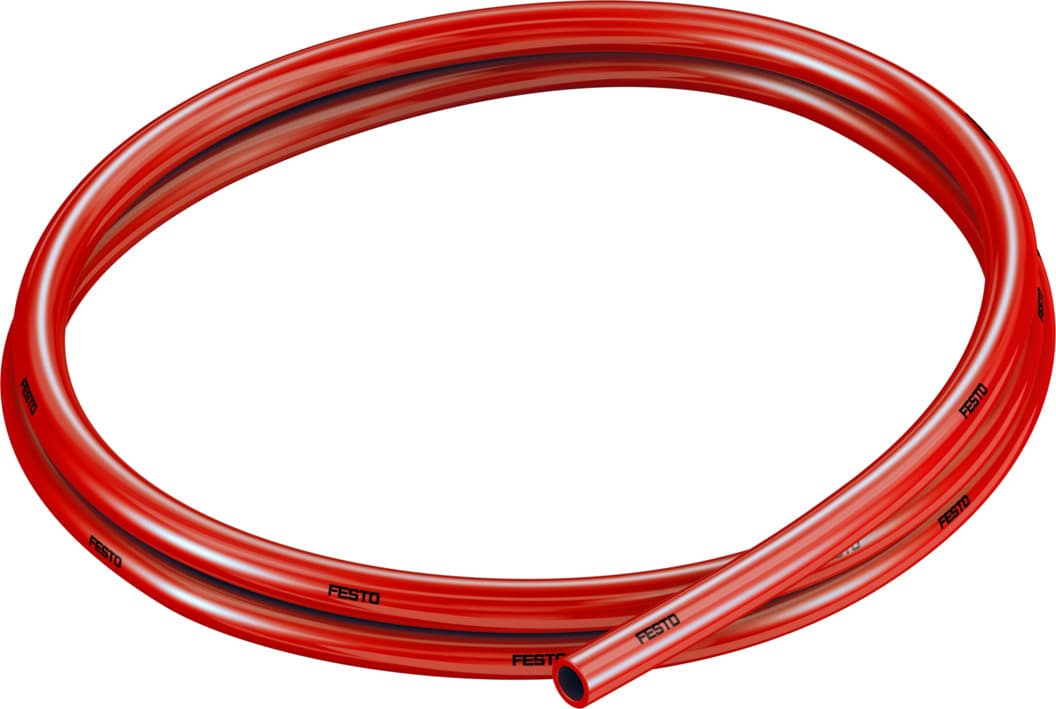

- 1The Festo PUN-8X1,25-RT plastic tubing features an outside diameter of 8 mm and a flow-relevant bending radius of 37 mm, ensuring efficient fluid flow in pneumatic systems.
- 2This tubing is made from high-quality TPE-U(PU) material, which is RoHS-compliant and suitable for use in cleanroom environments, making it ideal for various industrial applications.
- 3With a minimum bending radius of 21 mm, the PUN-8X1,25-RT is designed to withstand the rigors of continuous industrial use, ensuring reliability and durability.
- 4The tubing operates at pressures up to 0.6 MPa (6 bar) and is compatible with compressed air as well as water (liquid, ice-free), making it versatile for different operating conditions.
- 5The PUN-8X1,25-RT is certified by the German Technical Control Board (TÜV) and meets safety standards such as UL94 HB and LABS (PWIS) conformity, ensuring compliance with industry regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 8mm | Bending radius relevant for flow rate | 37mm |
Inside diameter | 5.7mm | Min. bending radius | 24mm |
Application note | TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged. | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 101.5psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Material fire test | UL94 HB |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0302kg/m | Pneumatic connection | For plug connection outside diameter 8 mm For barbed fitting, inside diameter 6 mm, with union nut For barbed fitting, inside diameter 6 mm |
Color | Red | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 178412 |
Specifications may be subject to change without notice
