Product Model

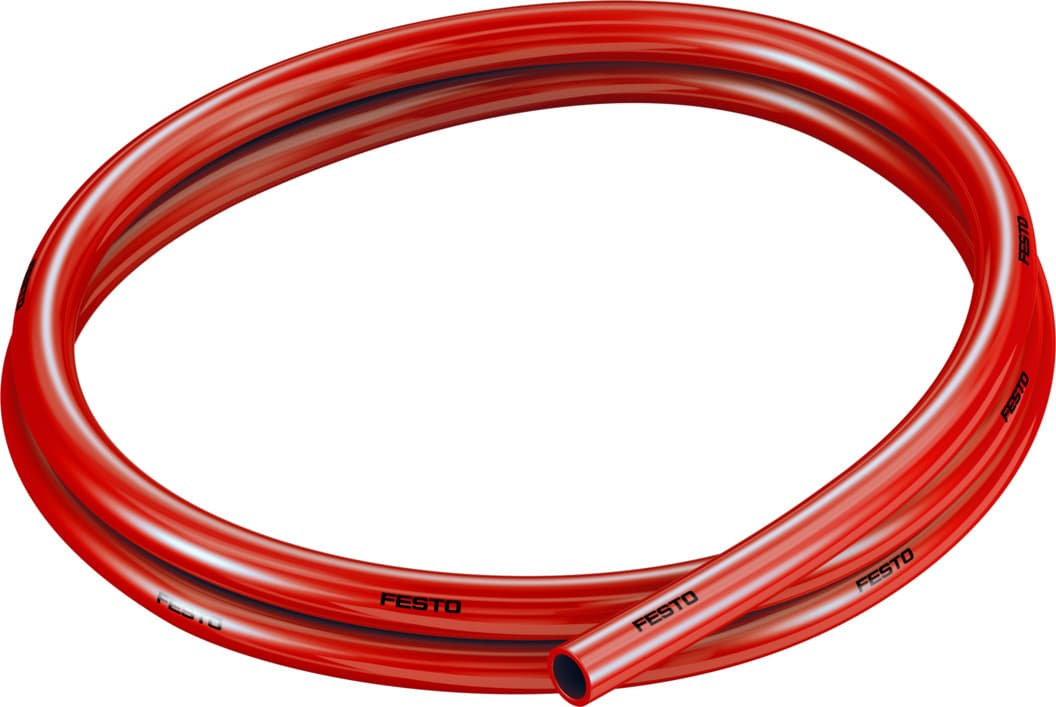

pun-h-10x1,5-rt-25
Selling Points
- 1The Festo PUN-H-10X1,5-RT plastic tubing is approved for use in food processing and features hydrolysis-resistant properties, ensuring durability and safety in various applications.
- 2This tubing is specifically designed for energy chains, capable of withstanding over 5 million cycles without failure, making it a reliable choice for high-cycle applications.
- 3The tubing operates within a wide temperature range of -35°C to 60°C, with temperature-dependent operating pressures ranging from -0.95 to 10 bar, ensuring flexibility in different environments.
- 4The PUN-H-10X1,5-RT meets ISO 8573-1:2010 standards for compressed air and is also suitable for use with water, making it a versatile option for various pneumatic systems.
- 5The product carries TÜV approval and is suitable for use with food, ensuring compliance with stringent safety standards and regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 10mm | Bending radius relevant for flow rate | 52mm |
Inside diameter | 7mm | Min. bending radius | 28mm |
Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0465kg/m | Pneumatic connection | For plug connection outside diameter 10 mm |
Color | Red | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8204448 |
Specifications may be subject to change without notice
