Product Model
pun-h-10x1,5-sw-25
Selling Points

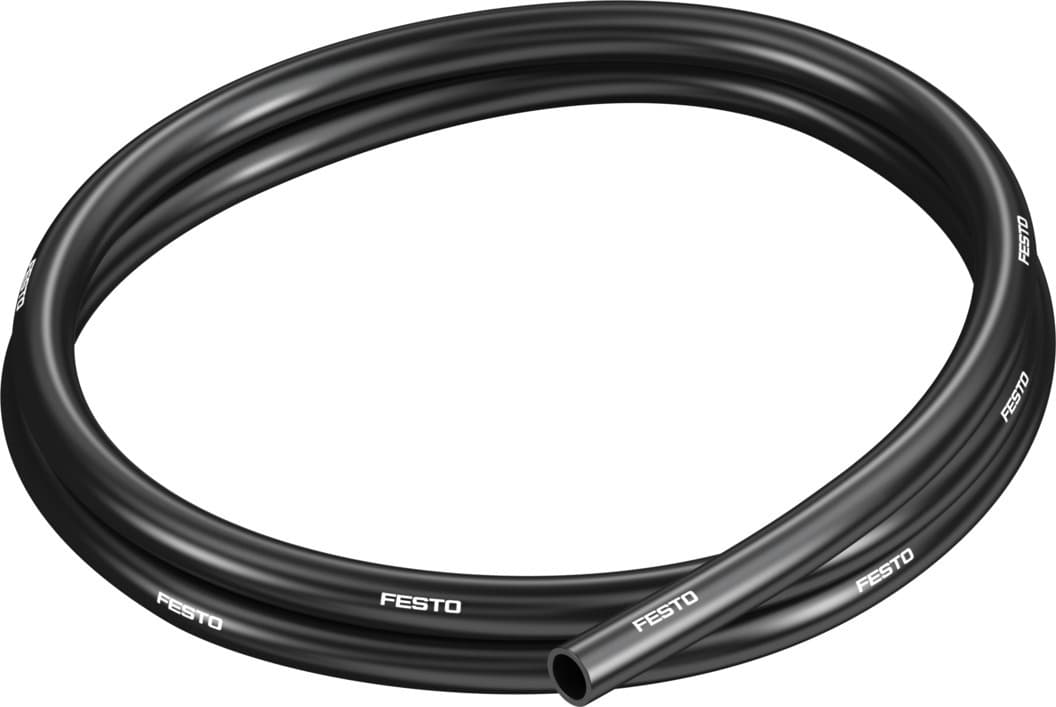

- 1The Festo PUN-H-10X1,5-SW plastic tubing is hydrolysis-resistant, making it suitable for use in food processing applications.
- 2This tubing features an outside diameter of 10 mm and an inside diameter of 7 mm, ensuring precise flow rates and efficient pneumatic connections.
- 3With a bending radius relevant for flow rate of 52 mm and a minimum bending radius of 28 mm, it is compatible with energy chains in high-cycle applications.
- 4The PUN-H-10X1,5-SW can operate under temperature-dependent pressures ranging from -0.95 to 10 bar, making it versatile for various industrial settings.
- 5This product is authorized by TÜV and is suitable for use with compressed air in accordance with ISO8573-1:2010, as well as water according to the manufacturer's declaration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 10mm | Bending radius relevant for flow rate | 52mm |
Inside diameter | 7mm | Min. bending radius | 28mm |
Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0465kg/m | Pneumatic connection | For plug connection outside diameter 10 mm |
Color | Black | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8204443 |
Specifications may be subject to change without notice
