Product Model
pun-h-12x2-bl-25
Selling Points

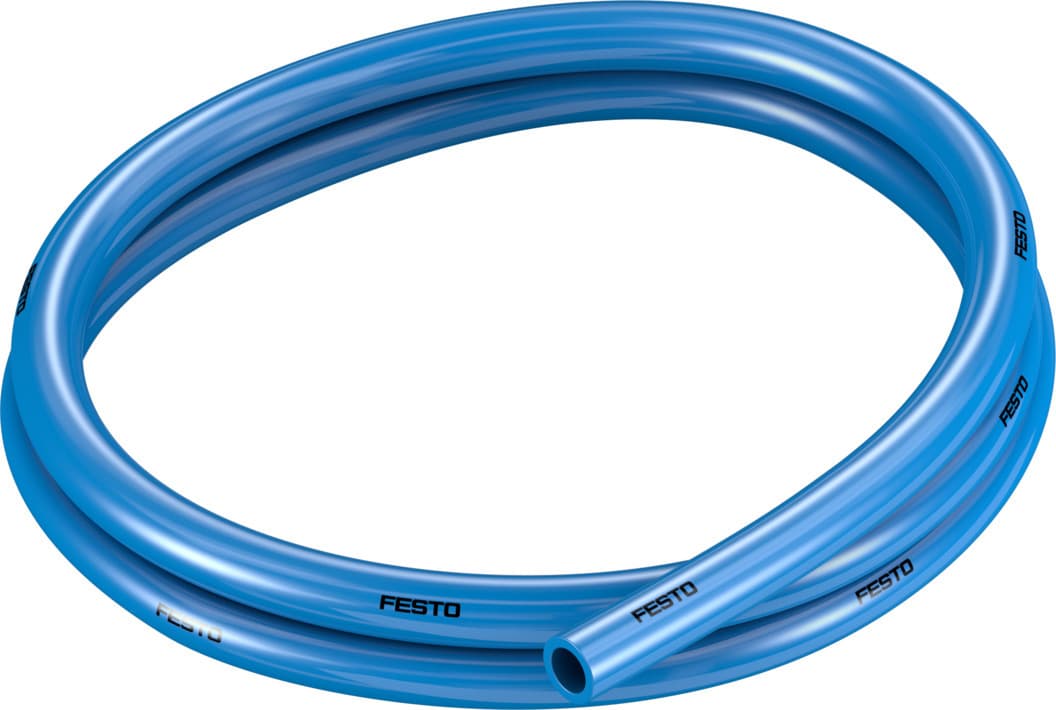

- 1The Festo PUN-H-12X2-BL-200 plastic tubing is designed to handle high-cycle applications, ensuring reliable performance in demanding environments.
- 2The blue-colored tubing is made from TPE-U (PU) material, which is copper and PTFE-free, making it durable and resistant to various operating conditions.
- 3With a flow-relevant bending radius of 62mm and a minimum bend radius of 33mm, this tubing optimizes fluid flow, reducing pressure drops and ensuring efficient operation.
- 4The tubing operates within a temperature range of -35°C to 60°C and supports compressed air up to 10 bar, making it suitable for a wide range of applications.
- 5The product is RoHS compliant, UL94 HB fire-inspection compliant, and compatible with cable carriers for over 5 million cycles according to FN 942021, ensuring high safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 12mm | Bending radius relevant for flow rate | 62mm |
Inside diameter | 8mm | Min. bending radius | 33mm |
Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0729kg/m | Pneumatic connection | For plug connection outside diameter 12 mm |
Color | Blue | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8204442 |
Specifications may be subject to change without notice
