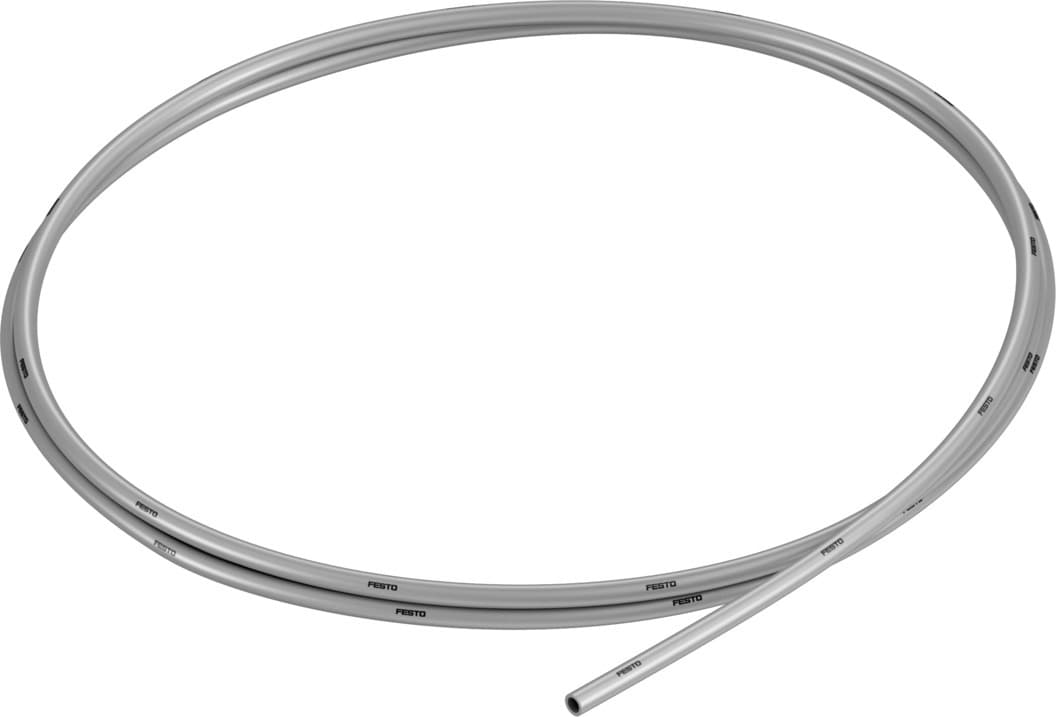

Festo PUN-H-1/8-SI-150-CB Silver Polyurethane Tubing

Selling Points

1High-Quality Material: Made from durable Thermoplastic Polyurethane (TPE-U) for long-lasting performance.
2Versatile Use: Suitable for compressed air and water, ensuring reliable operation in various applications.
3Wide Operating Range: Operates within -35°C to 63°C ambient temperature, making it adaptable to diverse environments.
4Hydrolysis Resistant: Certified for hydrolysis resistance, ensuring stability in humid conditions.
5Compact Design: Available in 1/8" outside diameter with a length of 150 feet, ideal for efficient system design.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
External-? inches	1/8	Bending radius relevant for flow rate	11.887mm
Min. bending radius	6.096mm	Application note	TPE-U Ether based
Tubing characteristics	Suitable for energy chains	Temperature-dependent operating pressure	-0.993bar 9.997bar
Information on operating pressure	Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Material fire test	UL94 HB	LABS (PWIS) conformity	VDMA24364-B2-L
Suitability for the production of Li-ion batteries	Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils	Cleanroom class	Statically installed element, no meaningful evaluation possible according to ISO 14644-1
For use in the food industry	See supplementary material information	Ambient temperature	-35°C 63°C
Product weight by length	0.06kg/m	Pneumatic connection	For plug connection outside diameter 1/8"
Color	Silver	Shore hardness	D 52 +/-3
Note on materials	RoHS-compliant	Material of pneumatic tubing	TPE-U(PU)
Manufacturer ID	567937

Specifications may be subject to change without notice
