Product Model

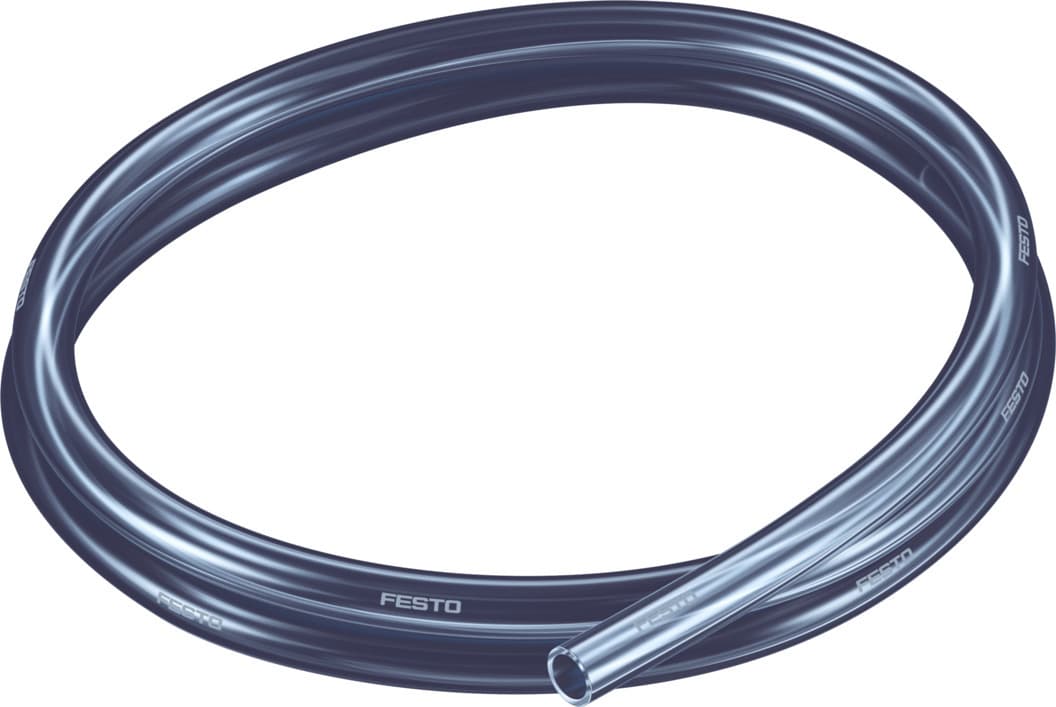

pun-h-3/8-tsw-150-cb
Selling Points
- 1The Festo PUN-H-3/8-TSW-150-CB tubing is made from high-quality polyurethane, ensuring excellent flexibility and resistance to moisture and mold, making it ideal for various industrial applications.
- 2This tubing is designed for use in robotics, X-Ray inspection machines, and flexible manufacturing systems, providing a reliable and durable solution for complex automation needs.
- 3The PUN-H-3/8-TSW-150-CB tubing features a continuous spool method, which protects the product from moisture and prevents mold and mildew growth, ensuring long-term performance.
- 4With a maximum operating temperature of 85°C and a minimum operating temperature of -30°C, this tubing can withstand a wide range of environmental conditions, making it suitable for various industrial settings.
- 5The tubing has a minimum bend radius of 0.972 inches (24.69 mm), ensuring that it can be bent without compromising its performance or causing damage, making it easy to handle and install in complex systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
External-? inches | 3/8 | Bending radius relevant for flow rate | 52.121mm |
Min. bending radius | 24.994mm | Application note | TPE-U Ether based |
Tubing characteristics | Suitable for energy chains | Temperature-dependent operating pressure | -0.993bar 9.997bar |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 63°C |
Product weight by length | 0.48kg/m | Pneumatic connection | For plug connection outside diameter 3/8" |
Color | Translucent black | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8203976 |
Specifications may be subject to change without notice
