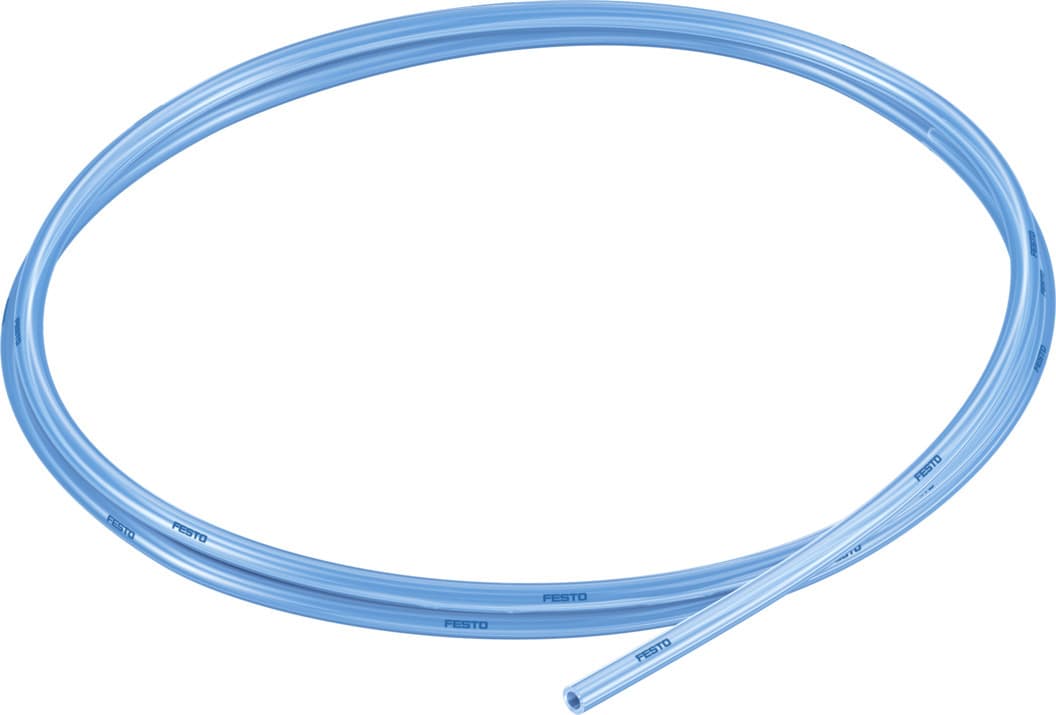

Product Model
pun-h-4x0,75-tbl-25
Selling Points
- 1The PUN-H-4X0,75-TBL-25 is designed to handle high cycle rates, making it suitable for demanding pneumatic applications.
- 2This tubing is approved for use in food processing and is resistant to hydrolysis, ensuring it remains safe and durable in moist environments.
- 3The PUN-H-4X0,75-TBL-25 operates effectively within a temperature range of -35°C to 60°C and supports a temperature-dependent operating pressure of up to 10 bar.
- 4The tubing features a flexible design with a bending radius relevant for flow rate of 16 mm, ensuring smooth operation and minimizing kinks.
- 5The transparent blue color of the tubing allows for easy detection of particles, moisture, and oil, making it simple to monitor the condition of your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 4mm | Bending radius relevant for flow rate | 16mm |
Inside diameter | 2.6mm | Min. bending radius | 8mm |
Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0085kg/m | Pneumatic connection | For plug connection outside diameter 4 mm For barbed fitting, inside diameter 3 mm, with union nut |
Color | Translucent blue | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8205518 |
