Product Model

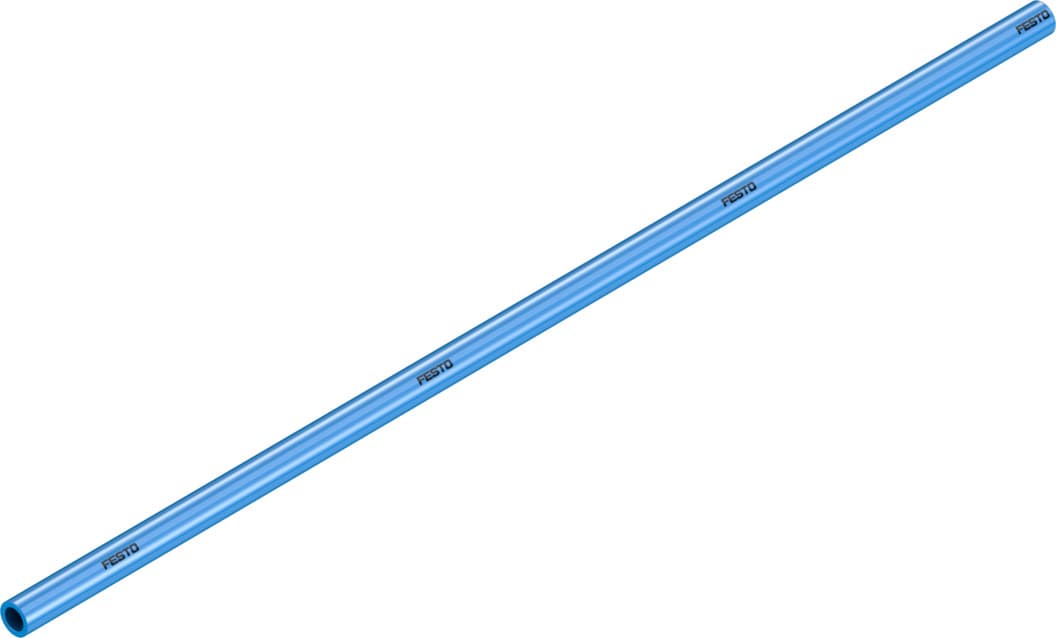

pun-h-6x1-bl-25
Selling Points
- 1High-Quality Material: Made from thermoplastic polyurethane (TPE-U(PU)), this tubing is copper and PTFE-free, ensuring it is halogen-free and RoHS-compliant.
- 2Food-Safe and Corrosion-Resistant: FDA compliant and resistant to corrosion, making it suitable for use in cleanrooms and applications involving food.
- 3Temperature-Dependent Operating Pressure: Operating pressure ranges from -0.95 bar to 10 bar, depending on temperature, ensuring reliable performance across various conditions.
- 4Easy Installation: Designed with a one-click principle, this tubing is very easy to install, reducing setup time and effort.
- 5Versatile Applications: Suitable for compressed air and water applications, with a bending radius relevant for flow rate of 26.5 mm, making it ideal for energy chains in high-cycle applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 6mm | Bending radius relevant for flow rate | 26mm |
Inside diameter | 4mm | Min. bending radius | 10mm |
Application note | TPE-U Ether based | Tubing characteristics | Suitable for energy chains |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 145psi |
Information on operating pressure | Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C | Certification | German Technical Control Board (TüV) |
Certificate issuing authority | B 013277 0506 00 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Material fire test | UL94 HB | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
For use in the food industry | See supplementary material information | Ambient temperature | -35°C 60°C |
Product weight by length | 0.0183kg/m | Pneumatic connection | For plug connection outside diameter 6 mm For barbed fitting, inside diameter 4 mm, with union nut |
Color | Blue | Shore hardness | D 52 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 8205513 |
Specifications may be subject to change without notice
