Product Model
pun-v0-6x1-sw
Selling Points

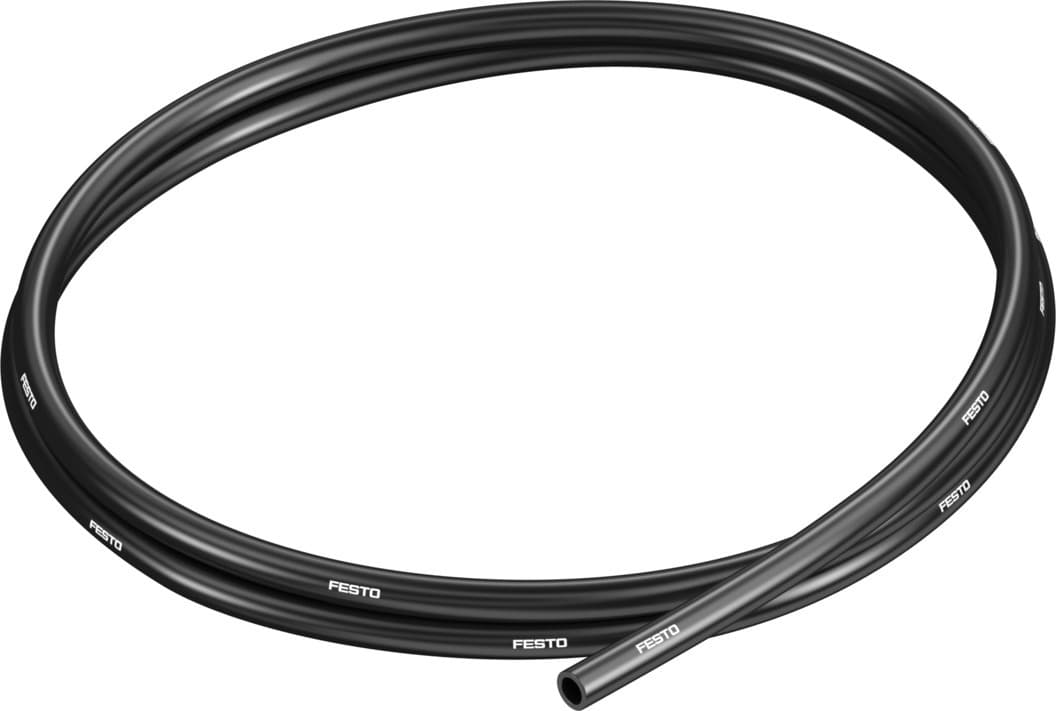

- 1The Festo PUN-V0-6X1-SW plastic tubing features an outside diameter of 6 mm and an inside diameter of 4 mm, making it perfect for pneumatic connections.
- 2This tubing is designed to withstand high cycle rates, ensuring reliable performance in demanding applications. It is compatible with cable carriers and meets stringent quality standards.
- 3The PUN-V0-6X1-SW is made from TPE-U(PU) material, which is copper and PTFE-free, and RoHS compliant. This ensures the tubing meets environmental and safety regulations.
- 4The tubing has a flow-relevant bending radius of 26.5 mm and a minimum bend radius of 12 mm, allowing for efficient and safe installation in various settings.
- 5The Festo PUN-V0-6X1-SW is certified by TÜV and is suitable for operating temperatures ranging from -35°C to 60°C, making it versatile for diverse industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Outside diameter | 6mm | Bending radius relevant for flow rate | 26.5mm |
Inside diameter | 4mm | Min. bending radius | 12mm |
Tubing characteristics | Suitable for energy chains | Operating pressure for entire temperature range | -13.775psi 101.5psi |
Temperature-dependent operating pressure | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Certification | German Technical Control Board (TüV) | Certificate issuing authority | B 013277 0506 00 |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Material fire test | UL94 V-0 (3mm) UL94 V-2 (0.75mm) |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -35°C 60°C |
Note on ambient temperature | unpressurised use up to 90°C | Product weight by length | 0.02kg/m |
Pneumatic connection | For plug connection outside diameter 6 mm For barbed fitting, inside diameter 4 mm, with union nut For barbed fitting, inside diameter 4 mm | Color | Black |
Information on color | Deviates from the standard color due to flame protection | Shore hardness | D 54 +/-3 |
Note on materials | RoHS-compliant | Material of pneumatic tubing | TPE-U(PU) |
Manufacturer ID | 525438 |
Specifications may be subject to change without notice
