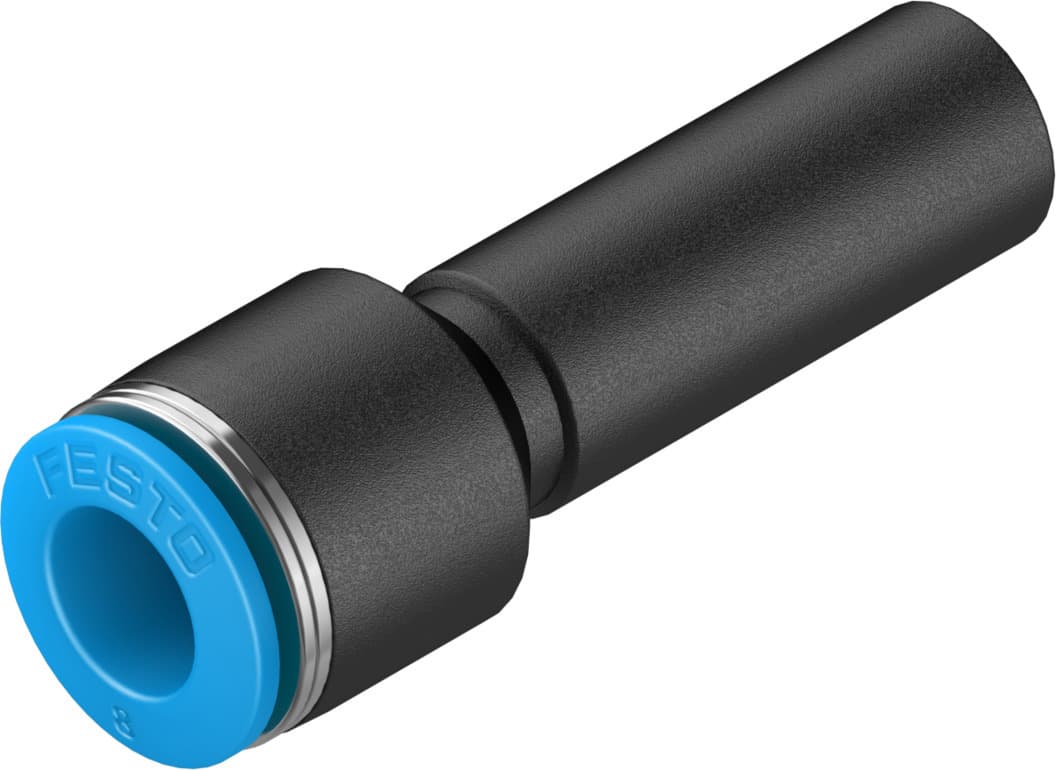

QS-10H-8 Push-in Connector by Festo - High-Quality Pneumatic Connection

Selling Points

1The QS-10H-8 push-in connector ensures secure and reliable pneumatic connections, suitable for compressed air and water applications.
2This connector operates within a wide temperature range of -10°C to 80°C and supports pressures up to 14 bar, making it versatile for various industrial settings.
3With a corrosion resistance classification of CRC 1, the QS-10H-8 is designed to withstand low corrosion stress, ensuring durability in harsh environments.
4Featuring a push-pull principle, the QS-10H-8 allows for easy assembly and disassembly, reducing maintenance time and effort.
5The connector conforms to RoHS and ISO 8573-1:2010 standards, ensuring compliance with international quality and safety regulations.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	5.4mm
Mounting position	Any	Design	Straight design
Pack size	10	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	5.8g
Pneumatic connection 1	Push-in sleeve ? 10 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 8 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	153043

Specifications may be subject to change without notice
