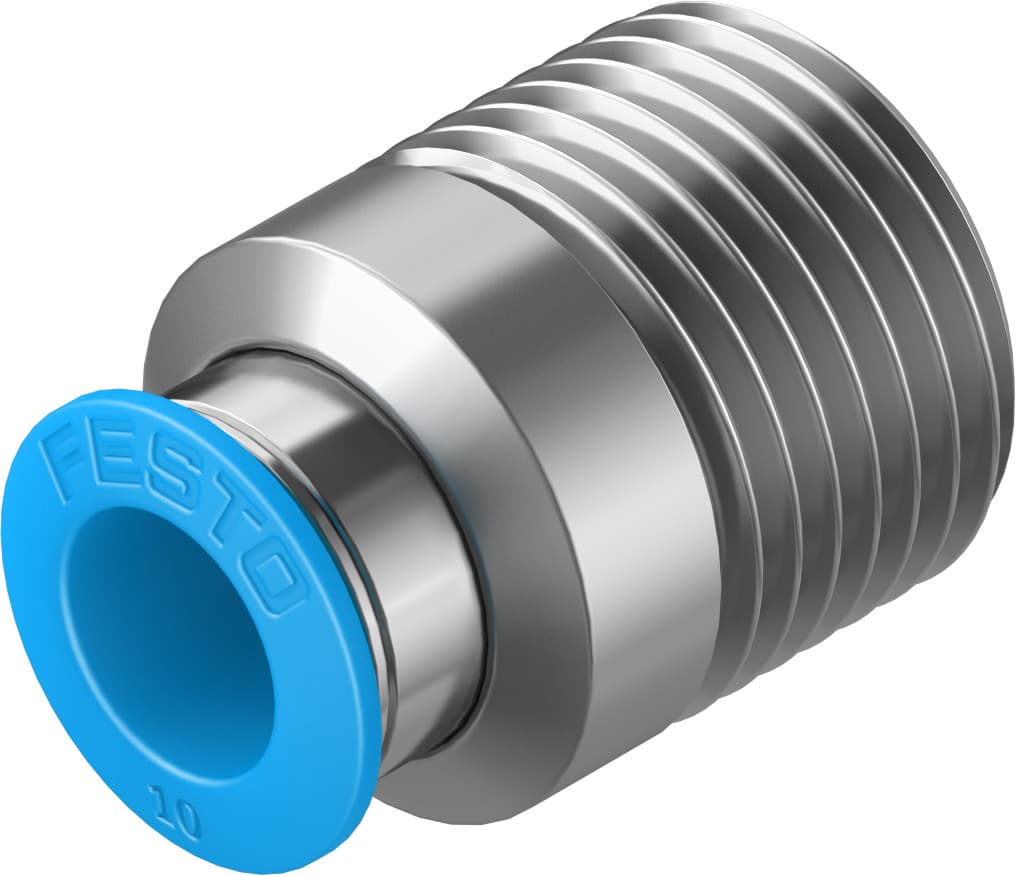

Product Model
qs-1/2-10-i
Selling Points
- 1High-Quality Brass, Nickel-Plated Housing: Durable and resistant to corrosion.
- 2Easy Push-in Installation: Simple and quick connection for pneumatic tubing.
- 3Max Operating Pressure of 6 Bar: Suitable for various industrial applications.
- 4Operating Medium: Compressed Air and Water: Compatible with ISO 8573-1:2010 standards.
- 5Low Corrosion Stress (CRC 1): Ensures long-lasting performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.3mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 26Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 45g |
Type of mounting | Internal hexagon, AF 6 | Pneumatic connection 1 | External thread R1/2 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 190648 |
Specifications may be subject to change without notice
