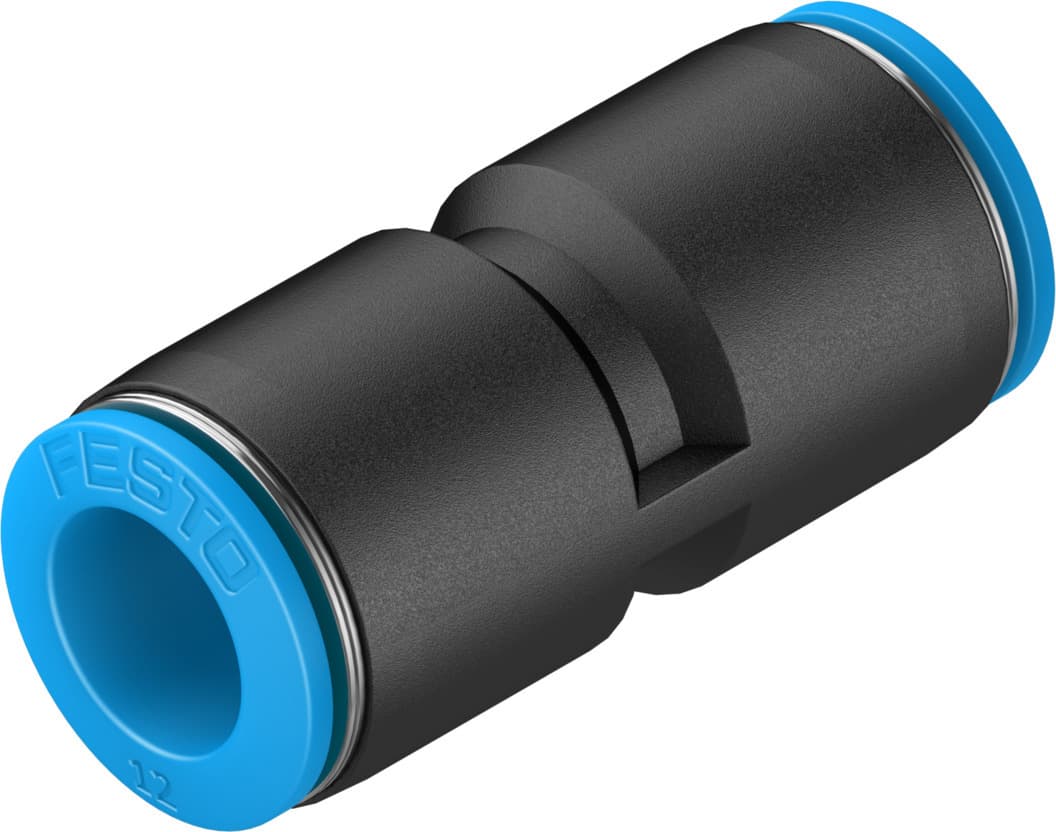

Festo QS-12-20 Push-in Connector: Reliable Pneumatic Connection

Selling Points

1The Festo QS-12-20 push-in connector ensures a secure and reliable connection for compressed air and water applications, with operating pressures up to 6 bar and temperature ranges from -10°C to 80°C.
2This connector can be installed in any position, making it highly versatile for various pneumatic systems.
3With a corrosion resistance classification of CRC 1, the QS-12-20 is designed to withstand low corrosion stress, ensuring long-lasting performance in different environments.
4The connector supports lubricated operation, enhancing its durability and efficiency in pneumatic systems.
5The Festo QS-12-20 meets ISO 8573-1:2010 for compressed air and can handle water according to manufacturer's declaration, ensuring compliance with industry standards.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	11mm
Mounting position	Any	Design	Straight design
Pack size	20	Structural design	Push-pull principle
Operating pressure for entire temperature range	-13.775psi 87psi	Temperature-dependent operating pressure	-13.775psi 203psi
Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	-10°C 80°C	Product weight	22g
Pneumatic connection 1	for pneumatic tubing outside diameter 12 mm	Pneumatic connection 2	for pneumatic tubing outside diameter 12 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130690

Specifications may be subject to change without notice
