Product Model
qs-6h-4-100

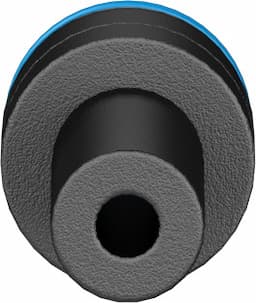

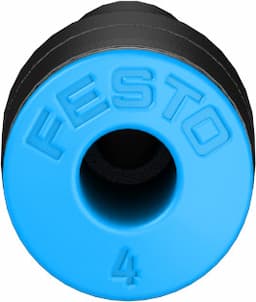

Selling Points

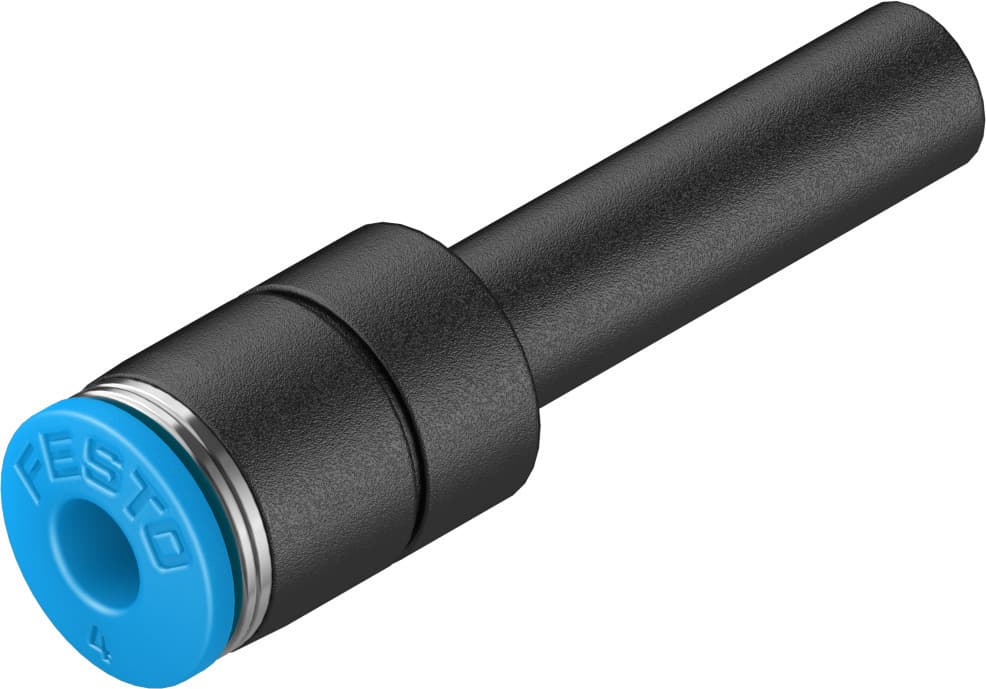

- 1The Festo QS-6H-4-100 push-in connector offers a nominal width of 2.5 mm, making it ideal for precise pneumatic applications. Its arbitrary installation position provides flexibility in setup.
- 2This connector operates within a complete temperature range of -0.95 to 6 bar and a temperature-dependent range of -0.95 to 14 bar, ensuring reliable performance across various conditions.
- 3The QS-6H-4-100 is designed with a push-pull principle, ensuring easy and secure connections. It is compatible with compressed air to ISO 8573-1:2010 and water according to manufacturer declaration.
- 4The connector features a corrosion-resistant class KBK 1, indicating low corrosion stress. It is made from RoHS-compliant materials, including PBT for the housing and POM for the sleeve.
- 5The Festo QS-6H-4-100 push-in connector is available in packs of 100 pieces, making it convenient for bulk orders. It is also oiled operation possible, enhancing its durability and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.5mm |
Mounting position | Any | Design | Straight design |
Pack size | 100 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 2.9g |
Pneumatic connection 1 | Push-in sleeve ? 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130695 |
Specifications may be subject to change without notice
