Product Model

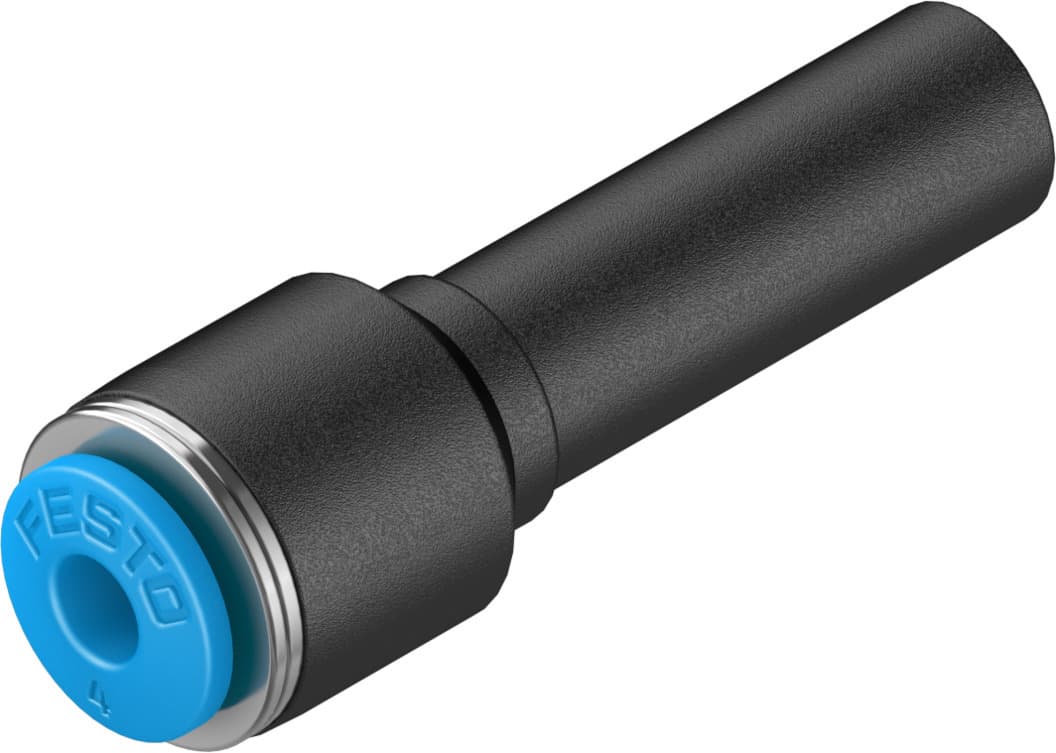

qs-8h-4
Selling Points
- 1The QS-8H-4 is made from durable Polybutylene Terephthalate (PBT) housing, Polyoxymethylene (POM) release ring, and High-alloy stainless steel tube retaining claw, ensuring long-lasting performance and resistance to corrosion.
- 2This push-in connector operates at a wide temperature range of -10°C to 80°C and supports operating pressures from -0.95 bar to 6 bar, making it suitable for various industrial applications.
- 3The QS-8H-4 features a push-pull principle design, allowing for easy and quick installation without the need for specialized tools. Its optimized bending radius ensures smooth tubing connections.
- 4The QS-8H-4 meets international standards such as ISO 8573-1:2010 for compressed air and is RoHS compliant, ensuring it meets environmental regulations and safety standards.
- 5This connector is suitable for both compressed air and water applications, making it a versatile choice for a wide range of pneumatic tasks. It also supports lubricated operation, enhancing its performance in dynamic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.4mm |
Mounting position | Any | Design | Straight design |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 3.8g |
Pneumatic connection 1 | Push-in sleeve ? 8 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130622 |
Specifications may be subject to change without notice
