Product Model
qsc-10-50
Selling Points

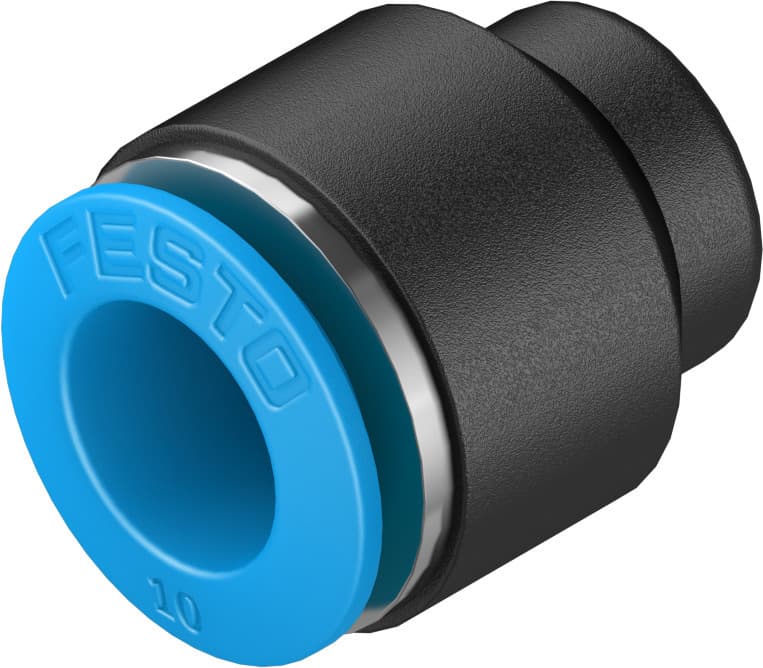

- 1Standard Size and Design: The Festo QSC-10-50 Push-in Cap features a standard size and a push-pull principle design, ensuring easy and secure connections in various applications.
- 2Optional Mounting Position: This cap offers an optional mounting position, providing flexibility in installation and use, making it suitable for diverse pneumatic systems.
- 3Operating Pressure Range: The cap operates within a pressure range of -0.095 to 6 bar (-13.775 to 87 psi), making it versatile for different pneumatic requirements.
- 4Corrosion Resistance and Cleanroom Compliance: The QSC-10-50 is designed with low corrosion stress (CRC 1) and meets Class 4 cleanroom standards according to ISO 14644-1, ensuring reliability in various environments.
- 5Material Compliance and Weight: Made from RoHS-compliant PBT and POM materials, this cap weighs 8 grams and is suitable for use with compressed air or water, as per ISO 8573-1:2010.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Mounting position | Any |
Design | Blanking plug | Pack size | 50 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Product weight | 8g | Pneumatic connection 1 | for pneumatic tubing outside diameter 10 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130707 |
Specifications may be subject to change without notice
