Product Model
qsc-4-100
Selling Points

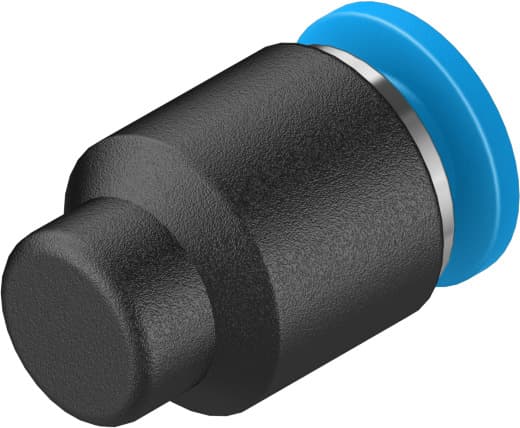

- 1The Festo QSC-4-100 push-in cap ensures secure and reliable pneumatic connections with its push/pull principle design.
- 2This cap operates within a wide pressure range of -0.95 to 6 bar, making it suitable for various pneumatic applications.
- 3With a low corrosion stress classification (CRC 1), the QSC-4-100 is ideal for environments where corrosion is a concern.
- 4The cap can be assembled in any position, offering flexibility in installation and use.
- 5The QSC-4-100 conforms to ISO 8573-1:2010 for compressed air and is RoHS-compliant, ensuring it meets international standards for safety and sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Mounting position | Any |
Design | Blanking plug | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Product weight | 2.5g | Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130704 |
Specifications may be subject to change without notice
