Product Model
qsc-6-100
Selling Points

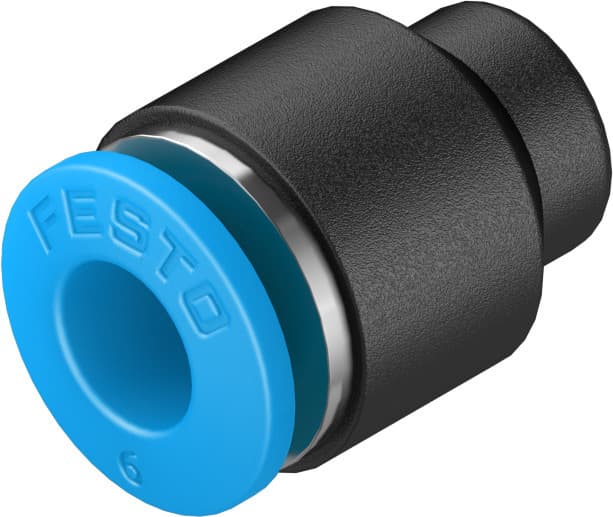

- 1The Festo QSC-6-100 pneumatic blanking plug is designed with a push-pull principle, making it easy to install and remove without the need for tools. It features a 6mm threaded connection for seamless integration into your pipework.
- 2This plug is compatible with both compressed air and water, ensuring it can be used in a variety of applications including water treatment facilities, oil and gas industries, and marine engineering.
- 3The QSC-6-100 boasts a broad operating pressure range of -0.95 to 6 bar, making it suitable for demanding environments. It also operates within a temperature range of -10°C to 80°C.
- 4Constructed from PBT housing, this plug is resistant to mechanical wear and heat, ensuring reliable durability. The materials used, including POM for the release ring and NBR for the tubing seal, enhance its performance.
- 5The Festo QSC-6-100 is compliant with RoHS regulations and meets cleanroom standards (Class 4 according to ISO 14644-1). It also supports lubricated operation, increasing efficiency in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Mounting position | Any |
Design | Blanking plug | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Product weight | 3.5g | Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 130705 |
Specifications may be subject to change without notice
