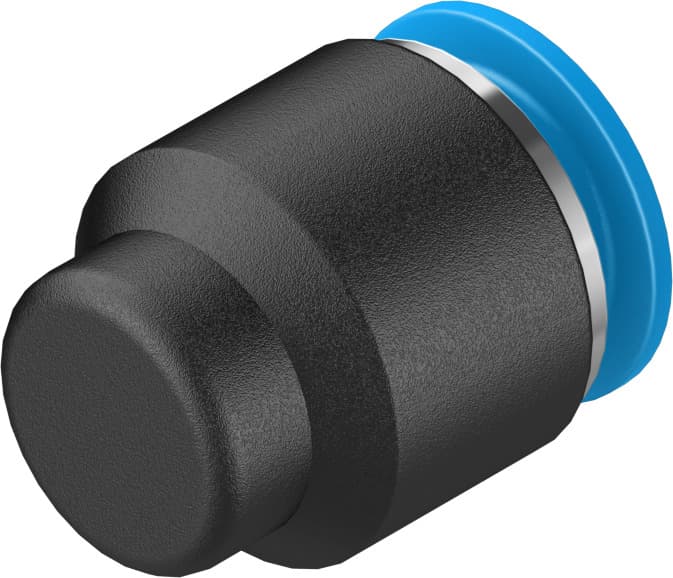

Festo QSC-8-50 Push-in Cap: High-Quality Pneumatic Fitting

Selling Points

1The Festo QSC-8-50 push-in cap is designed with a push-pull principle, ensuring easy and secure connections for pneumatic tubing.
2This cap is compatible with tubing outer diameters of 8 mm and operates within a temperature range of -10°C to 80°C, making it suitable for various industrial applications.
3The QSC-8-50 features a corrosion resistance class of CRC 1, indicating low corrosion stress and high durability in demanding environments.
4The cap is made from RoHS-compliant materials, including PBT for the housing and POM for the release ring, ensuring compliance with environmental regulations.
5With a maximum operating pressure of 6 bar and a weight of 5 grams, the QSC-8-50 is an ideal choice for applications requiring precise pneumatic control.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Mounting position	Any
Design	Blanking plug	Pack size	50
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 4 according to ISO 14644-1	Ambient temperature	-10°C 80°C
Product weight	5g	Pneumatic connection 1	for pneumatic tubing outside diameter 8 mm
Releasing ring color	Blue	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	130706

Specifications may be subject to change without notice
