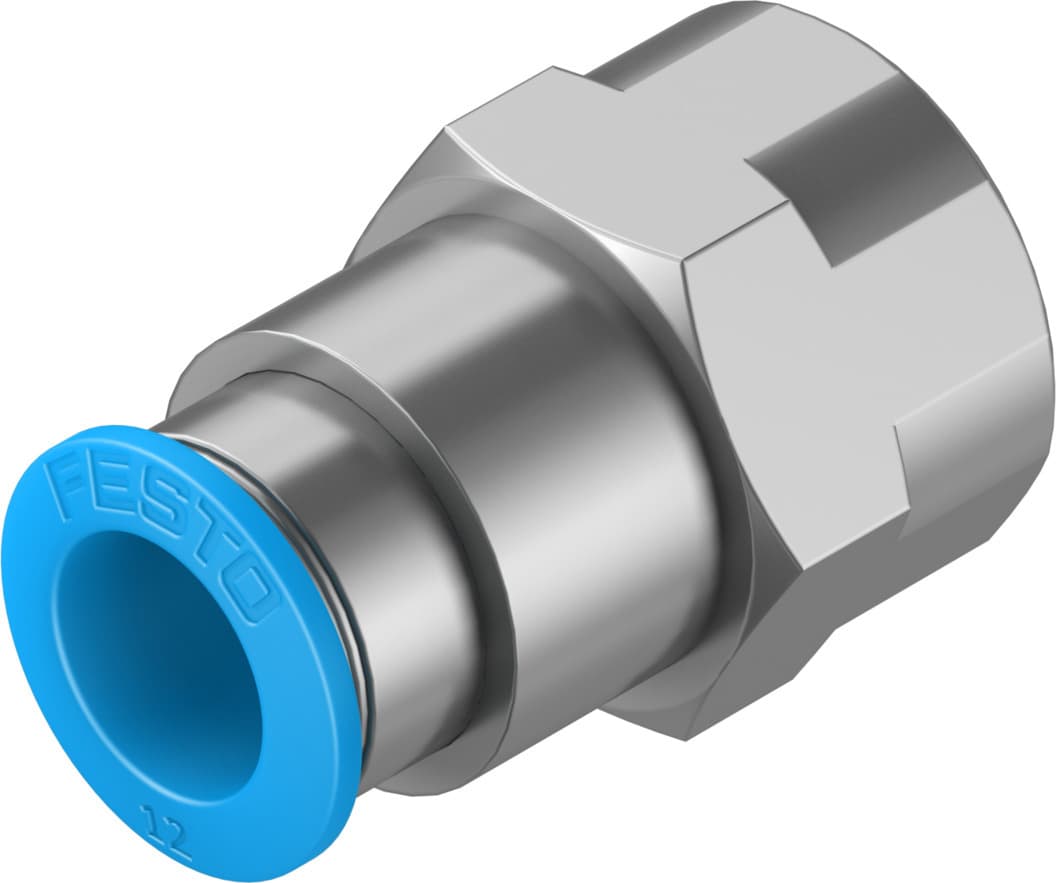

Product Model
qsf-1/2-12-b
Selling Points
- 1Durable brass construction with nickel plating.
- 211mm nominal size for standard applications.
- 3Operating pressure range of -0.95 to 6 bar.
- 4Compatible with compressed air (ISO 8573-1:2010) and water.
- 5Low corrosion stress classification (CRC 1).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 11mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 26Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 56g |
Type of mounting | External hexagon, AF 24 | Pneumatic connection 1 | Internal thread G1/2 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 190653 |
Specifications may be subject to change without notice
