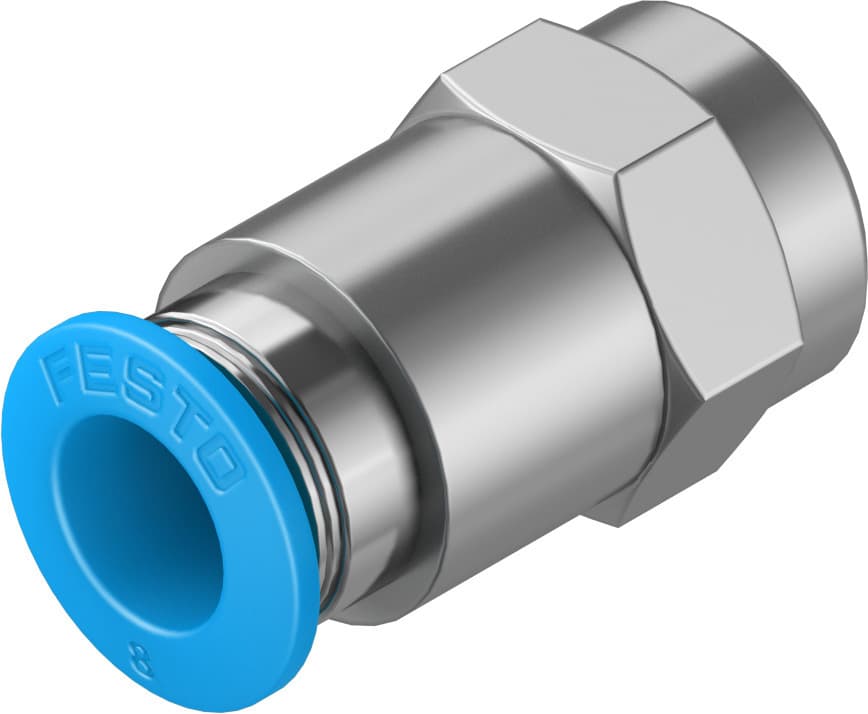

Product Model
qsf-1/8-8-b
Selling Points
- 1Made from nickel-plated brass and PBT, ensuring durability and resistance to corrosion.
- 2Push-in fitting design allows for quick and secure connection to pneumatic tubing.
- 3Suitable for temperatures up to 80°C and pressures up to 14 bar, making it versatile for various applications.
- 4Meets ISO 8573-1:2010 for compressed air and manufacturer's declaration for water usage.
- 5Internal thread G1/8 and external hex for easy handling and precise fitting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 7mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | Straight design | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 80°C | Nominal tightening torque | 7Nm |
Tolerance for nominal tightening torque | ± 20% | Product weight | 16g |
Type of mounting | External hexagon, AF 14 | Pneumatic connection 1 | Internal thread G1/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 153025 |
Specifications may be subject to change without notice
