Product Model

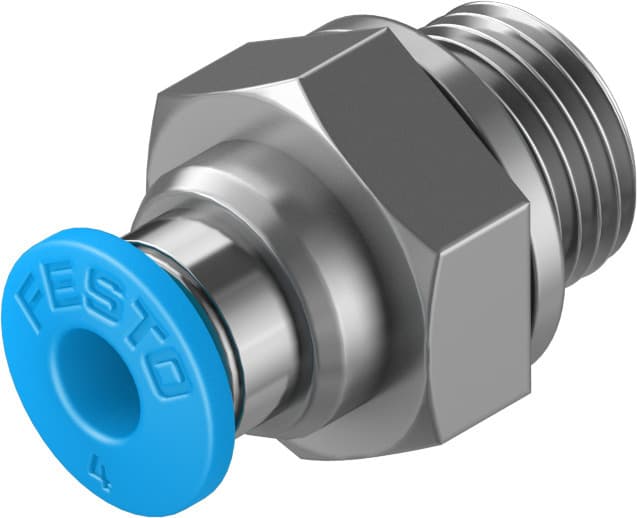

qs-g1/8-4-100
Selling Points
- 1Miniature Design - The Festo QSML-G1/8-4-100 features a compact L-shape design, making it perfect for space-constrained applications.
- 2Sealing Ring - Equipped with a sealing ring on the screwed plug, ensuring reliable and leak-free connections in pneumatic systems.
- 3Versatile Mounting - Available for any mounting position, providing flexibility in installation and use in various pneumatic setups.
- 4High-Quality Materials - Constructed with durable materials, ensuring long-lasting performance and resistance to wear and tear.
- 5Pack Size of 100 - Conveniently packaged in sets of 100, making it easy to stock and manage your pneumatic fittings inventory.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | Straight design | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 9.1g | Type of mounting | External hexagon, AF 13 |
Pneumatic connection 1 | External thread G1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 132036 |
Specifications may be subject to change without notice
