Festo QSH-1/2-U Push-In Stem Union - Industrial Automation

Selling Points

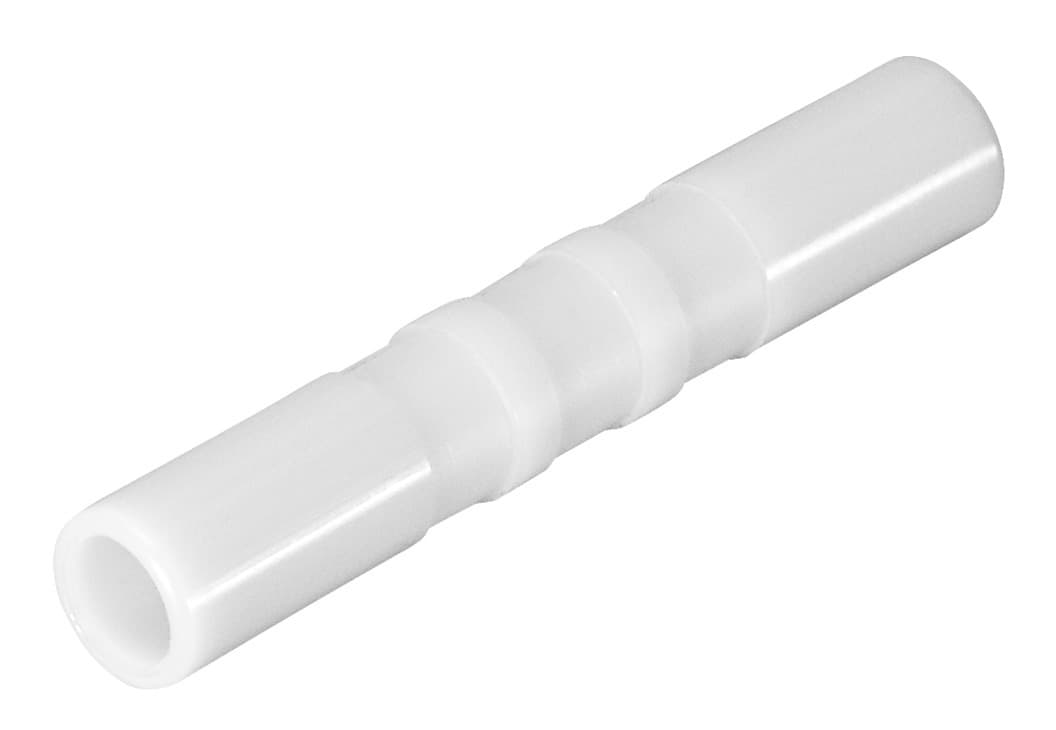

1The Festo QSH-1/2-U is a push-in stem union designed for easy and secure connections in industrial automation systems. It features a 1/2 inch push-to-connect (PTC) imperial connection size on both ports.
2This union is made from high-quality plastic and polymer materials, ensuring durability and resistance to various operating conditions. It operates within a temperature range of -10 to 80°C (-14 to 176°F).
3The QSH-1/2-U supports operating pressures up to 10 bar (145 psi), making it suitable for a wide range of pneumatic applications. It is part of Festo's extensive line of Quick Star push-in connectors.
4This product is versatile and can be used in various industrial settings, including computer software, flexible manufacturing systems, X-Ray inspection machines, and robotics. It is also part of the fittings, couplings, and distributors category.
5The Festo QSH-1/2-U is designed to prevent moisture and mold growth, ensuring the longevity of your pneumatic systems. It is available for download with detailed datasheets and manufacturer documentation.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Mounting position	Any
Design	Straight design	Pack size	1
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 145psi
Maritime classification	See certificate	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media	Operation with oil lubrication possible	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	-10°C 60°C
Product weight	3g	Pneumatic connection 1	Push-in sleeve ? 1/2"
Pneumatic connection 2	Push-in sleeve ? 1/2"	Ambient temperature Fahrenheit	14°F 140°F
Releasing ring color	Gray	Note on materials	RoHS-compliant
Housing material	PBT	Manufacturer ID	153822

Specifications may be subject to change without notice
