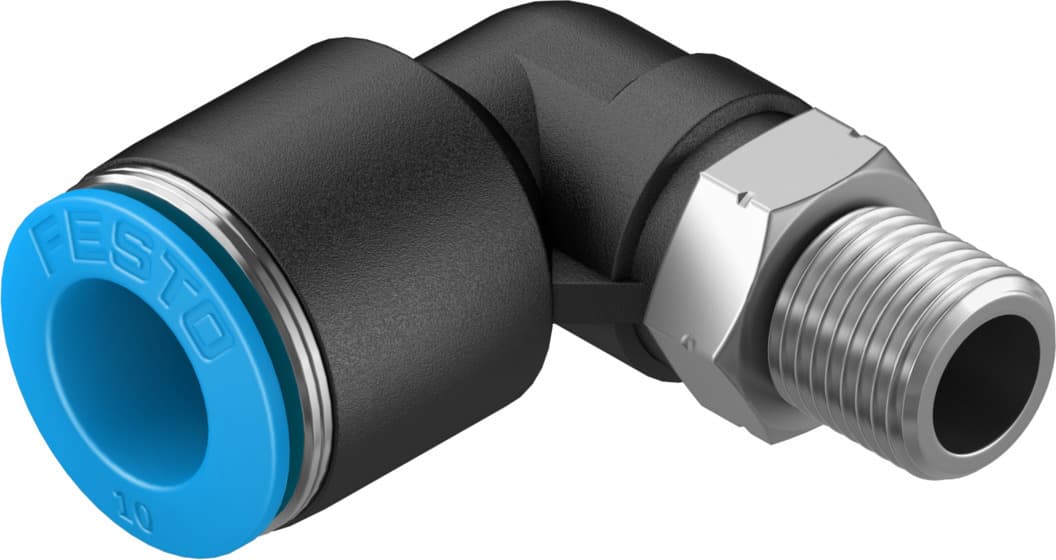

Festo QSL-1/8-10 Push-in L-Fitting - High-Quality Pneumatic Connection

Selling Points

1Reliable Pneumatic Connection: The QSL-1/8-10 features a push-in L-fitting design for easy and secure connections.
2High Operating Pressure: Supports operating pressures up to 6 bar and temperature ranges from -10°C to 80°C.
3Corrosion Resistance: Compliant with RoHS and CRC 1 for low corrosion stress, ensuring durability in various environments.
4Versatile Installation: Can be mounted in any position due to its push-pull principle, making it versatile for different applications.
5Compliant with ISO Standards: Meets ISO 8573-1:2010 standards for compressed air and is compatible with water according to manufacturer's declaration.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	Standard	Nominal width	6mm
Type of seal on screwed plug	Coating	Mounting position	Any
Design	L-shape	Pack size	10
Structural design	Push-pull principle	Operating pressure for entire temperature range	-13.775psi 87psi
Temperature-dependent operating pressure	-13.775psi 203psi	Information on operating pressure	Water: max. 0.6 MPa at max. 50 °C
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)	Information on operating and pilot media	Operation with oil lubrication possible
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 80°C	Nominal tightening torque	7Nm
Tolerance for nominal tightening torque	± 20%	Product weight	18g
Type of mounting	External hexagon, AF 12	Pneumatic connection 1	External thread R1/8
Pneumatic connection 2	for pneumatic tubing outside diameter 10 mm	Releasing ring color	Blue
Material of screwed plug	Brass, nickel-plated	Note on materials	RoHS-compliant
Housing material	PBT	Releasing ring material	POM
Material of tubing seal	NBR	Material of tube retaining claw	High-alloy stainless steel
Manufacturer ID	190658

Specifications may be subject to change without notice
