Product Model
qsl-3/8-8-50
Selling Points

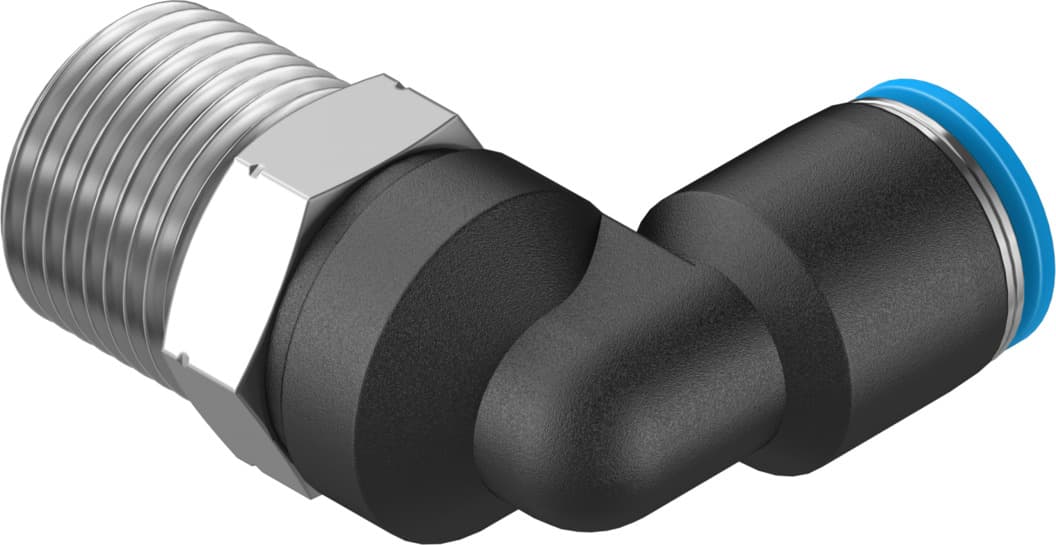

- 1The Festo QSL-3/8-8-50 push-in L-fitting offers a standard nominal size of 6.7 mm, ensuring precise and reliable pneumatic connections in various applications.
- 2This fitting features a push-pull principle, allowing for easy and secure assembly in any mounting position, making it versatile for different installation scenarios.
- 3The QSL-3/8-8-50 is designed to operate within a wide temperature range of -10°C to 80°C and supports operating pressures from -0.95 bar to 6 bar, making it suitable for various industrial environments.
- 4The fitting is made from high-quality materials, including PBT for the housing, POM for the release ring, and NBR for the tube seal, ensuring durability and resistance to corrosion.
- 5With a product weight of 31 grams and a nominal torque of 15.5 Nm, the QSL-3/8-8-50 is lightweight yet robust, making it ideal for both manual and automated pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 6.7mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape | Pack size | 50 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 31g | Type of mounting | External hexagon, AF 17 |
Pneumatic connection 1 | External thread R3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm |
Releasing ring color | Blue | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 130735 |
