Product Model

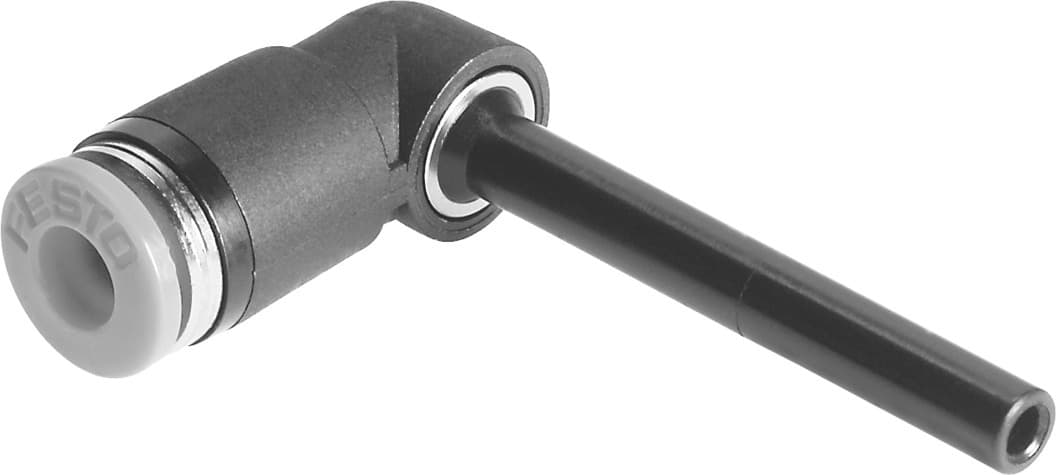

qsl-3/8h-1/4-u
Selling Points
- 1Robust Design: Built with a push/pull principle for easy installation and durability.
- 2360° Rotatability: Rotatable by 360° for versatile positioning in any assembly.
- 3High Pressure Range: Operates at -0.95 to 10 bar, suitable for various pneumatic applications.
- 4Corrosion Resistance: Classified as CRC 1, ensuring high corrosion resistance in harsh environments.
- 5Easy Maintenance: Features a grey release ring and materials like PBT and POM for easy maintenance and replacement.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 3.5mm |
Mounting position | Any | Design | L-shape |
Pack size | 1 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 145psi | Maritime classification | See certificate |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Product weight | 7.3g |
Pneumatic connection 1 | Push-in sleeve ? 3/8" | Pneumatic connection 2 | for pneumatic tubing outer diameter 1/4" |
Ambient temperature Fahrenheit | 14°F 140°F | Releasing ring color | Gray |
Note on materials | RoHS-compliant | Housing material | PBT |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 190631 |
