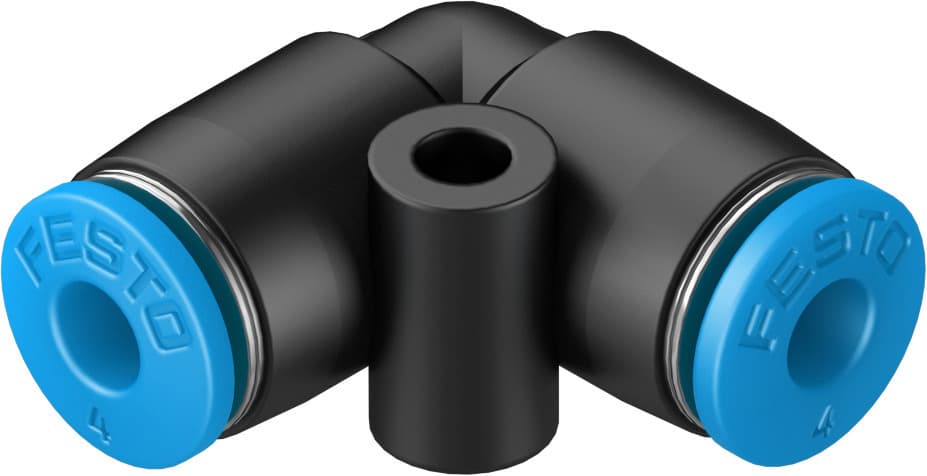

Product Model
qsl-4
Selling Points
- 1The Festo QSL-4 features a push-in principle for quick and simple installation, reducing setup time and improving efficiency in pneumatic applications.
- 2This L-shaped connector operates effectively between -10°C and +80°C, making it suitable for various environmental conditions.
- 3The QSL-4 can handle air pressures up to 14 bar, ensuring reliable performance in demanding pneumatic systems.
- 4Made from strong and durable thermoplastic (PBT), the QSL-4 provides long-lasting performance and resistance to wear and tear.
- 5Available in various sizes, the QSL-4 offers flexible tube-to-tube connections, accommodating different pneumatic applications with ease.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 2.8mm |
Mounting position | Any | Design | L-shape |
Pack size | 10 | Structural design | Push-pull principle |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Ambient temperature | -10°C 80°C | Product weight | 5.1g |
Pneumatic connection 1 | for pneumatic tubing outside diameter 4 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 153070 |
Specifications may be subject to change without notice
