Product Model
qslv-1/2-5/8-u
Selling Points

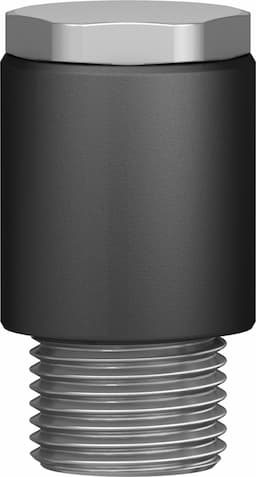

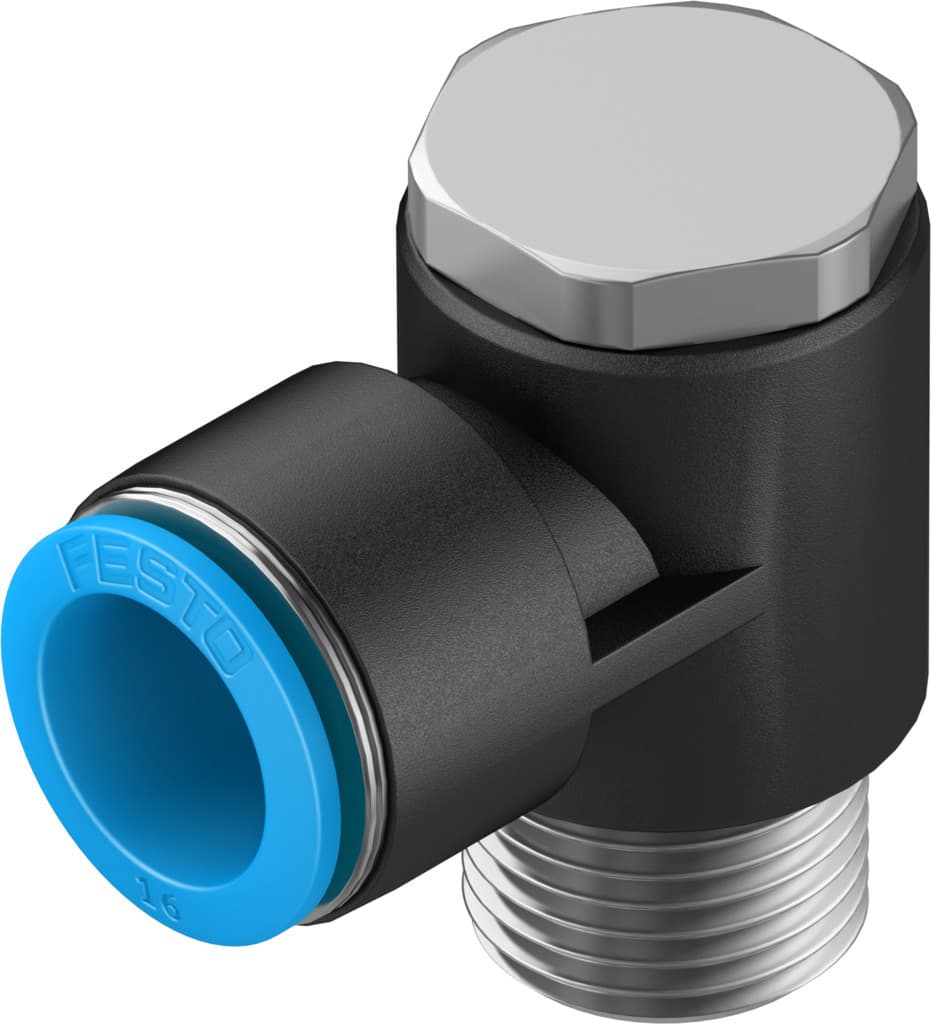

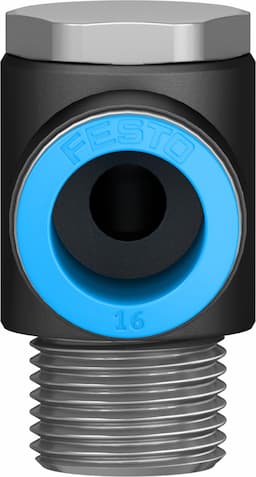

- 1The Festo QSLV-1/2-5/8-U push-in L-fitting is designed for use with 5/8" OD tubing and features a push-in connection method, making it easy to install and secure.
- 2This fitting operates within a wide temperature range of -10°C to 60°C and supports pressures up to 145 PSI (10 bar), ensuring reliable performance in various environments.
- 3Made from Polybutylene Terephthalate (PBT), the QSLV-1/2-5/8-U offers excellent durability and resistance to corrosion, making it suitable for long-term use in pneumatic systems.
- 4The fitting includes a coating type of seal on the screwed plug, providing a secure and leak-free connection. It also supports lubricated operation, enhancing its performance and longevity.
- 5The QSLV-1/2-5/8-U is RoHS-compliant and features a grey color release ring, ensuring compliance with environmental regulations and easy identification during installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8mm |
Type of seal on screwed plug | Coating | Mounting position | Any |
Design | L-shape | Pack size | 1 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
Maritime classification | See certificate | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
Max. tightening torque | 30Nm | Product weight | 109g |
Type of mounting | Hollow bolt with external hex | Pneumatic connection 1 | external thread 1/2 NPT |
Pneumatic connection 2 | for pneumatic tubing outside diameter 5/8" | Ambient temperature Fahrenheit | 14°F 140°F |
Releasing ring color | Gray | Note on materials | RoHS-compliant |
Housing material | PBT | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 190752 |
Specifications may be subject to change without notice
