Product Model

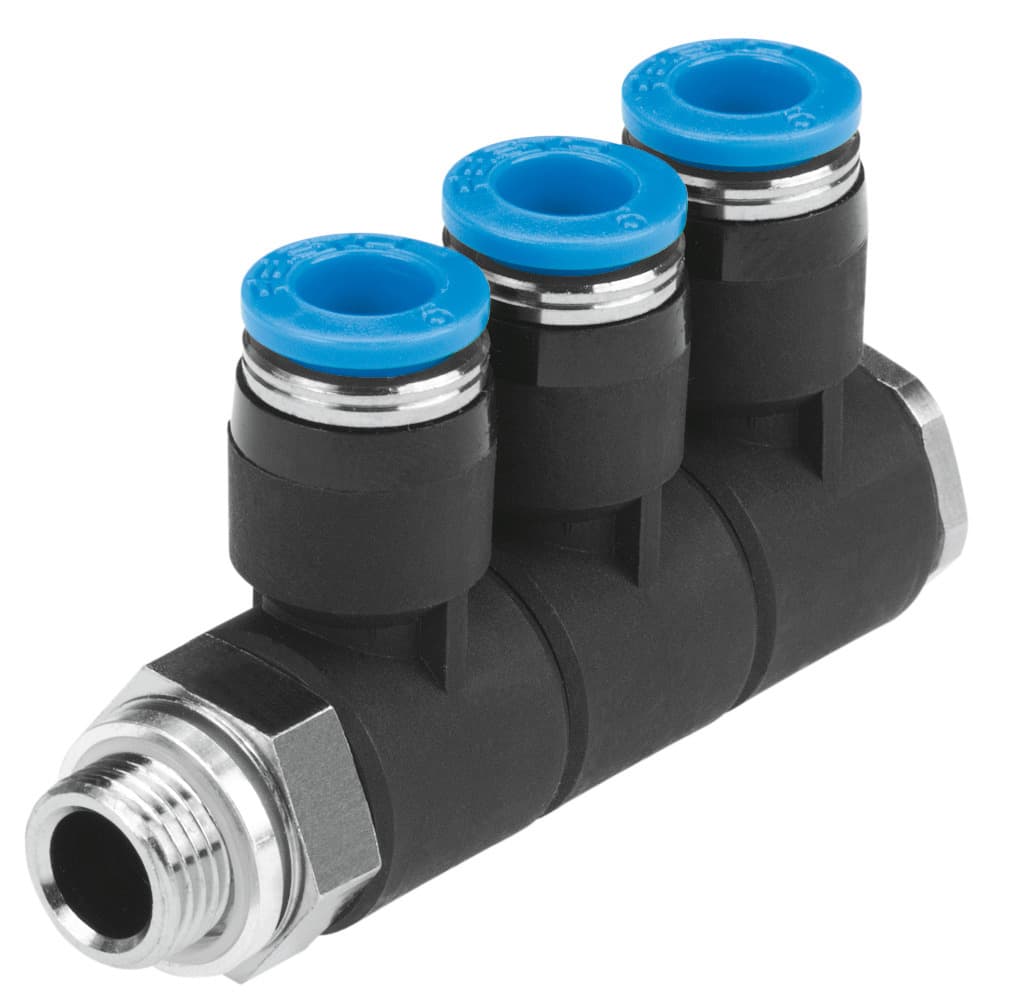

qslv3-g3/8-10
Selling Points
- 1The QSLV3-G3/8-10 features a push-pull principle design, allowing for easy and fast installation in any mounting position.
- 2This pneumatic distributor operates within a temperature-dependent pressure range of -0.095 MPa to 1.4 MPa, ensuring reliable performance in various conditions.
- 3Equipped with three outputs, the QSLV3-G3/8-10 is perfect for distributing compressed air or water in multiple directions, enhancing efficiency in automation systems.
- 4Built with materials that meet low corrosion stress standards (CRC 1), this product ensures durability and longevity in harsh environments.
- 5The QSLV3-G3/8-10 is designed for easy maintenance, with a sealing ring type OL available as an additional accessory for G-thread operation with water.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5.3mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Structural design | Push-pull principle | Pack size | 1 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 98g | No. of outlets | 3 |
No. of supply lines | 1 | Pneumatic connection 1 | External thread G3/8 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 186240 |
Specifications may be subject to change without notice
