Product Model
qslv4-g1/4-10
Selling Points

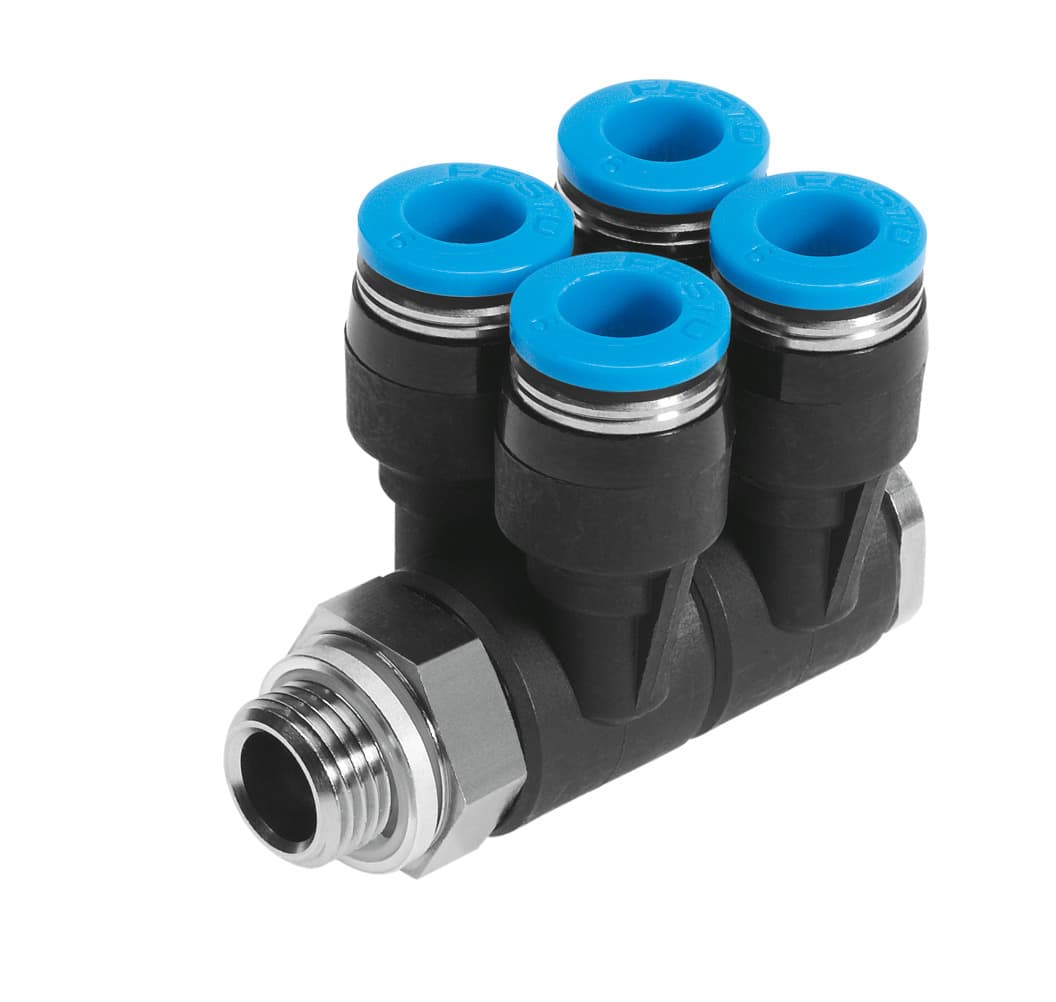

- 1The Festo QSLV4-G1/4-10 is a 4-fold, 360° orientable multiple distributor designed for versatile use in pneumatic systems. It features a standard size of 5 mm and a sealing ring on the screw-in stud for secure connections.
- 2This product operates within a temperature range of -10°C to 80°C and supports compressed air according to ISO 8573-1:2010, as well as water as specified by the manufacturer.
- 3The QSLV4-G1/4-10 has a push/pull principle construction and is corrosion-resistant with a class KBK 1 rating, indicating low corrosion stress. It is also RoHS compliant and made from high-quality materials like PBT and POM.
- 4The product includes male thread with an internal hexagon and a G1/4 connection, making it easy to integrate into various pneumatic systems. It also features a hose exterior diameter of 10 mm for efficient fluid transfer.
- 5The Festo QSLV4-G1/4-10 is designed for arbitrary installation positions, offering flexibility in automation tasks. It has a nominal tightening torque of 9 Nm with a tolerance of ±20%, ensuring reliable and consistent performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 5mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Structural design | Push-pull principle | Pack size | 1 |
Operating pressure for entire temperature range | -13.775psi 87psi | Temperature-dependent operating pressure | -13.775psi 203psi |
Information on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 9Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 92g | No. of outlets | 4 |
No. of supply lines | 1 | Pneumatic connection 1 | External thread G1/4 |
Pneumatic connection 2 | for pneumatic tubing outside diameter 10 mm | Releasing ring color | Blue |
Note on materials | RoHS-compliant | Housing material | PBT |
Hollow bolt material | Brass, nickel-plated | Releasing ring material | POM |
Material of tubing seal | NBR | Material of tube retaining claw | High-alloy stainless steel |
Manufacturer ID | 186249 |
Specifications may be subject to change without notice
