Product Model
qslv-g1/8-6-100
Selling Points

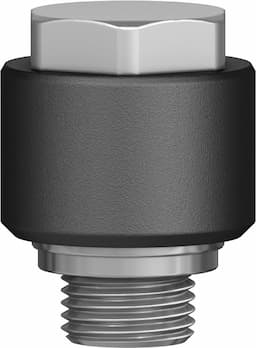

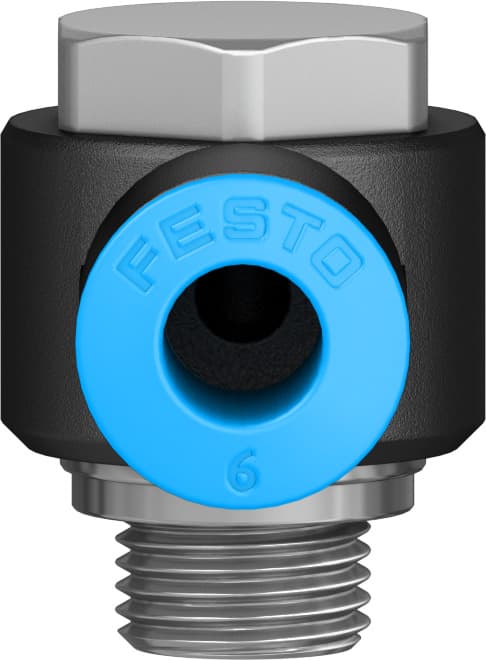

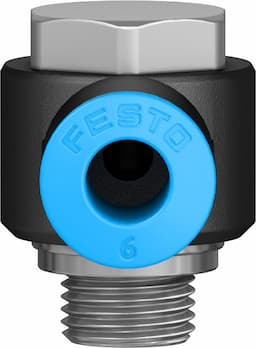

- 1The Festo QSLV-G1/8-6-100 elbow fitting is designed with a 1/8 inch BSPP (G) male port and a 6mm push-to-connect metric port, offering versatile connection options for pneumatic systems.
- 2Made from nickel-plated brass for the threaded portion and plastic for the body, this fitting provides durability and resistance to corrosion in various operating conditions.
- 3The QSLV-G1/8-6-100 features a sealing ring on the screw-in stud, ensuring a secure and leak-free connection in both standard and metric configurations.
- 4With an operating pressure range of -0.95 to 10 bar and an operating temperature range of -10 to 80°C, this elbow fitting is suitable for a wide range of industrial applications.
- 5Available in packs of 100 units, the Festo QSLV-G1/8-6-100 elbow fitting is an essential component for maintaining efficient pneumatic connections in various manufacturing processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 4mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 100 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 5.4Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 23g | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread G1/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 132061 |
Specifications may be subject to change without notice
