Product Model
qslv-g3/8-12
Selling Points

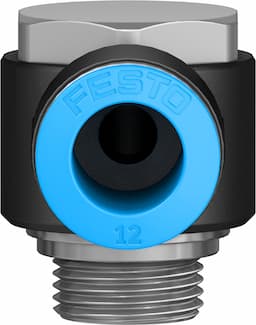

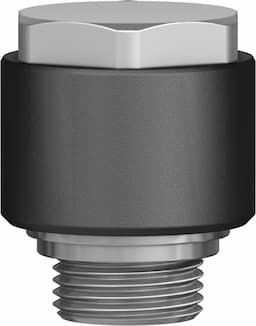

- 1The Festo QSLV-G3/8-12 features a push-in installation system, making it quick and simple to connect and disconnect.
- 2This L-shaped elbow fitting can be rotated in any direction, providing maximum flexibility for your pneumatic applications.
- 3The QSLV-G3/8-12 operates within a wide temperature range of -10°C to +80°C and supports air pressures up to 14 bar.
- 4Made from strong and durable thermoplastic (PBT), this fitting ensures long-lasting performance in various environments.
- 5Available with a variety of different fitting connector sizes, the QSLV-G3/8-12 is suitable for multiple pneumatic connections, including Metric, G parallel, and R tapered threads.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Standard | Nominal width | 8.7mm |
Type of seal on screwed plug | Sealing ring | Mounting position | Any |
Design | L-shape | Pack size | 10 |
Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 87psi |
Temperature-dependent operating pressure | -13.775psi 203psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible Water: G-thread only possible with sealing ring type OL as additional accessory |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
Nominal tightening torque | 15.5Nm | Tolerance for nominal tightening torque | ± 20% |
Product weight | 77g | Type of mounting | Hollow bolt with external hex |
Pneumatic connection 1 | External thread G3/8 | Pneumatic connection 2 | for pneumatic tubing outside diameter 12 mm |
Releasing ring color | Blue | Note on materials | RoHS-compliant |
Housing material | PBT | Hollow bolt material | Brass, nickel-plated |
Releasing ring material | POM | Material of tubing seal | NBR |
Material of tube retaining claw | High-alloy stainless steel | Manufacturer ID | 186145 |
Specifications may be subject to change without notice
